Infineon TechnologiesGermany

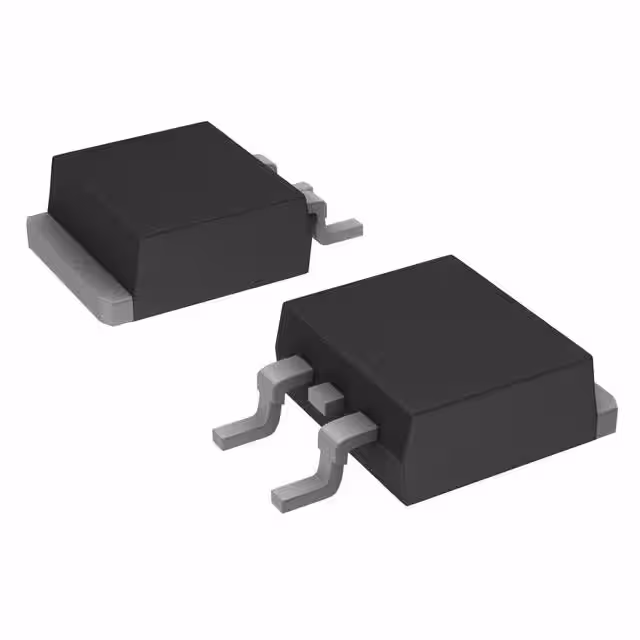

MOSFET P-CH 55V 42A D2PAK
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage55 V
Continuous drain current42 A
On-resistance20 mΩMax · 42A
Gate threshold voltage4 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 42A (Tc) |
| Drain to Source Voltage (Vdss) | 55 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 170W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Other | |
| Base Product Number | IRF4905 |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3500 pF @ 25 V |
| Mfr | Infineon Technologies |
| Product Status | Last Time Buy |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 42A, 10V |
| Series | HEXFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
