Sensata-Cynergy3United States

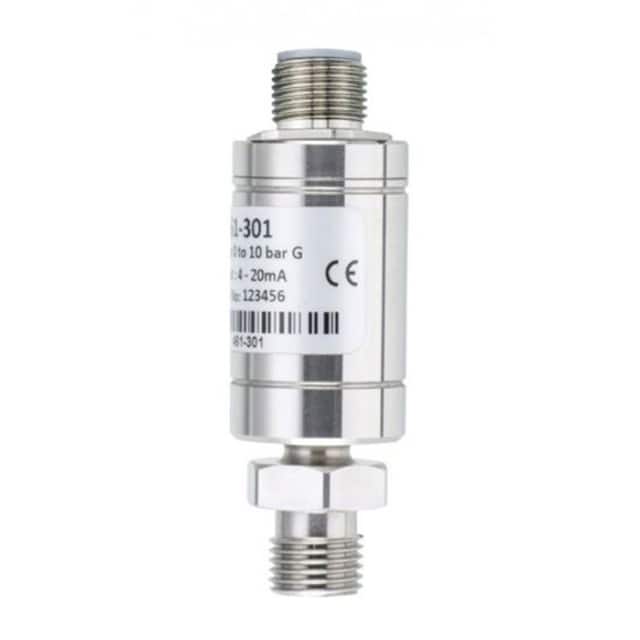

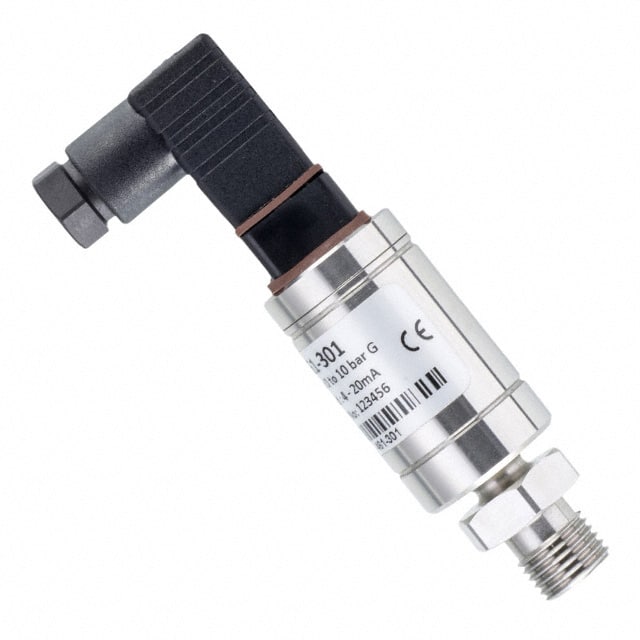

SENSOR PRESSURE 0-100BARG 4-20MA
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 9V ~ 32V |
| AC and DC characteristics | |
| Accuracy | ±0.25% |
| Environment and package | |
| Operating Temperature | -20°C~80°C |
| Package | Bag |
| Package / Case | Cylinder |
| Port Size | Male - 1/4" (6.35mm) BSP |
| Supplier Device Package | - |
| Other | |
| Applications | Industrial Automation |
| Base Product Number | IPS-G1003 |
| Features | Amplified Output, Temperature Compensated |
| Maximum Pressure | 2900.75PSI (20000kPa) |
| Mfr | Sensata-Cynergy3 |
| Operating Pressure | 1450.38PSI (10000kPa) |
| Output | 4 mA ~ 20 mA |
| Output Type | Analog Current |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Product Status | Active |
| Series | IPS |
| Termination Style | Connector |
