IO Audio TechnologiesUnited States

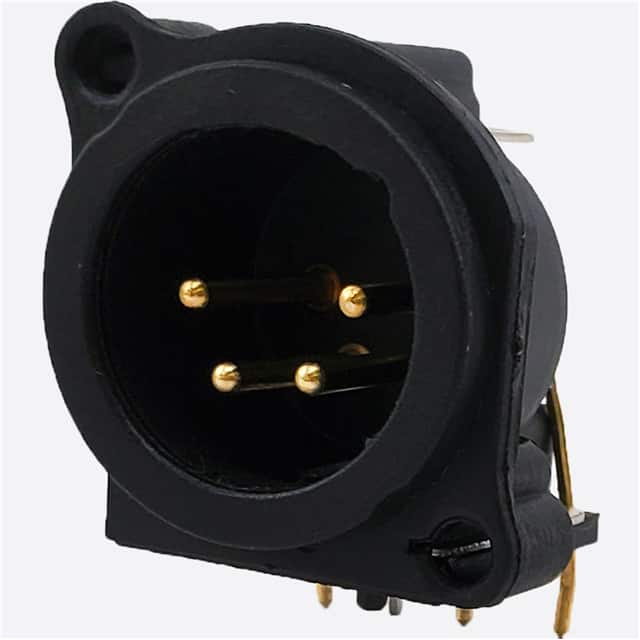

E SERIES, 4 PIN XLR, MALE, HORIZ
All alternatives
View full reportTechnical parameters
Key specs
Positions4
GenderMale
Current rating3 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A |
| Voltage Rating | 50VAC |
| Environment and package | |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Operating Temperature | -40°C~70°C |
| Package | Tray |
| Shell Size - Insert | XLR |
| Shell Size, MIL | - |
| Other | |
| Applications | Audio, Aviation, Communication Systems |
| Backshell Material, Plating | - |
| Cable Opening | - |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
| Contact Material | Brass |
| Fastening Type | Latch Lock |
| Features | Board Guide, Board Lock, Ground |
| Ingress Protection | - |
| Insert Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mfr | IO Audio Technologies |
| Number of Positions | 4 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Product Status | Active |
| Series | E |
| Shell Finish | - |
| Shell Material | Polyamide (PA), Nylon |
| Shielding | Unshielded |
| Termination | Solder |
