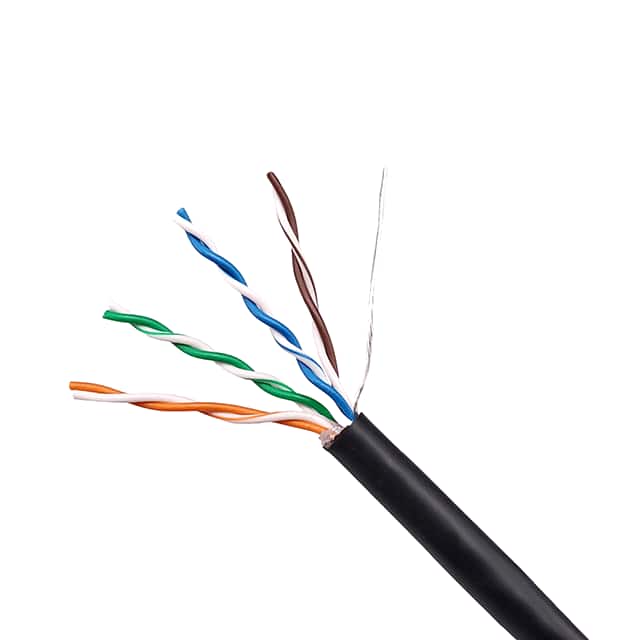

CAT5E STRANDED 24AWG F/UTP CMR,
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | -20°C~60°C |
| Package | Bulk |
| Other | |
| Base Product Number | IO-E4242S |
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | - |
| Features | Drain Wire |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.244" (6.20mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0197" (0.500mm) |
| Length | 1000.0' (304.8m) |
| Mfr | IO Audio Technologies |
| Number of Conductors | 8 (4 Pair Twisted) |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Datacom |
| Wire Gauge | 24 AWG |
