IO Audio TechnologiesUnited States

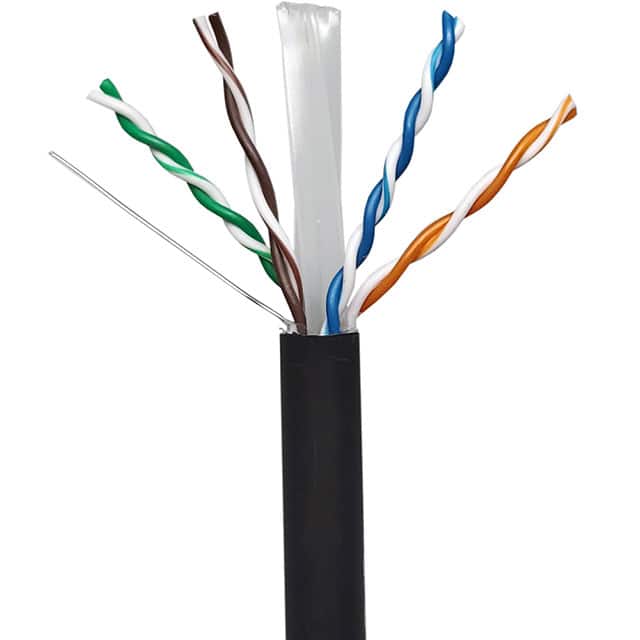

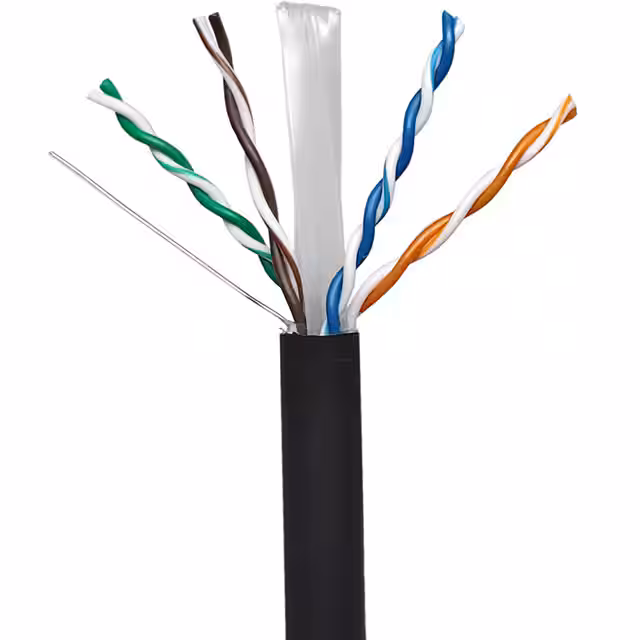

F/UTP CAT6 23AWG X 4P SOLID CABL
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | -20°C~60°C |
| Package | Spool |
| Other | |
| Cable Type | Multi-Pair, Cat6 |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Drain Wire, Flame Retardant |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.283" (7.19mm) |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Jacket (Insulation) Thickness | 0.0177" (0.450mm) |
| Length | - |
| Mfr | IO Audio Technologies |
| Number of Conductors | 8 (4 Pair Twisted) |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shield Coverage | - |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | - |
| Wire Gauge | 23 AWG |
