Rohm SemiconductorJapan
TRANS NPN/PNP 50V 0.15A 6SMT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 150mA |
| Power - Max | 300mW |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 1mA, 6V |
| Frequency - Transition | 180MHz, 140MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

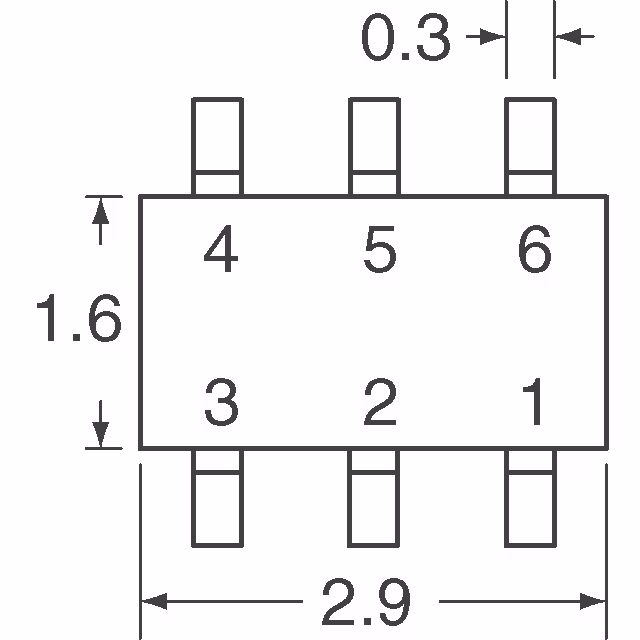

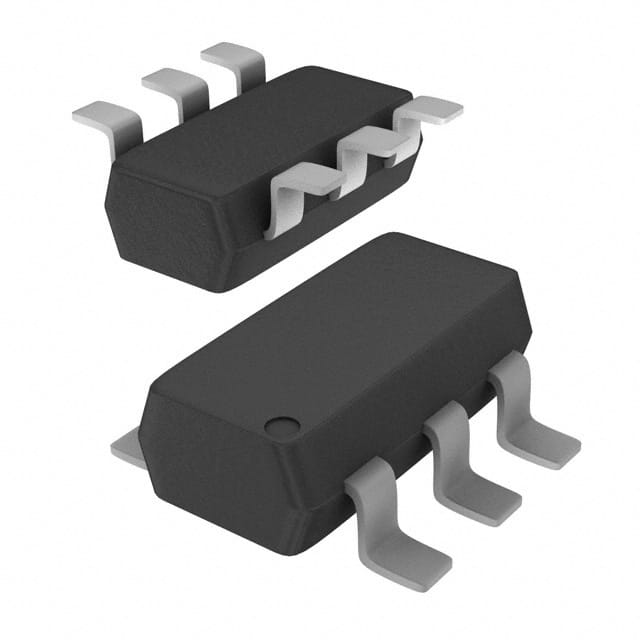

| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | SMT6 |
| Other | |
| Base Product Number | IMZ2AT108 |
| Mfr | Rohm Semiconductor |
| Product Status | Not For New Designs |
| Series | - |
| Transistor Type | NPN, PNP |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA, 500mV @ 5mA, 50mA |
