IRISO USA Inc.South Korea

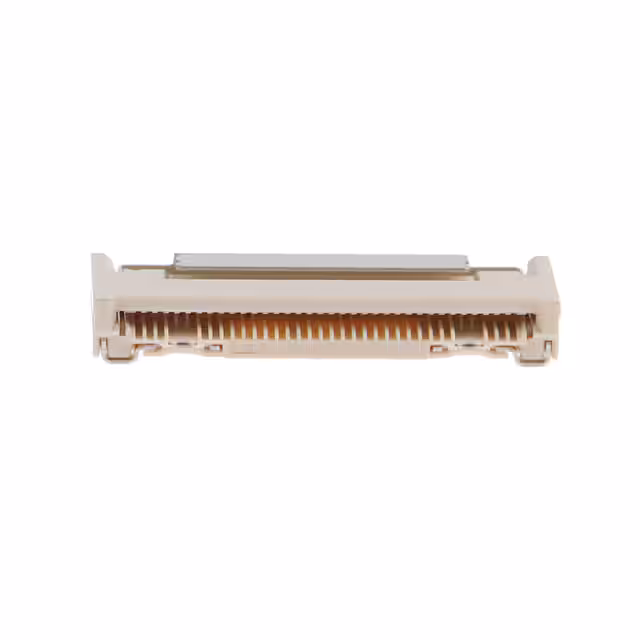

CONN FFC R/A .5MM 35POS
All alternatives
View full reportTechnical parameters
Key specs
Positions35
Pitch500 µm
Current rating500 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 50V |
| Environment and package | |
| Height Above Board | 0.134" (3.40mm) |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | - |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Actuator Color | - |
| Actuator Material | - |
| Base Product Number | IMSA-115 |
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Contact Material | Copper Alloy |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Housing Color | Black |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | - |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | - |
| Mfr | IRISO USA Inc. |
| Number of Positions | 35 |
| Pitch | 0.020" (0.50mm) |
| Product Status | Active |
| Series | 11501 |
| Termination | Solder |
