Isocom Components 2004 LTDUnited Kingdom
16PIN TRANSISTOR DETECTOR, HIGH
All alternatives
View full reportTechnical parameters
Key specs
Channels4
Isolation voltage5.3 kV
Output typeTransistor
Current transfer ratio50 %10mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 400% @ 10mA |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Number of Channels | 4 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 5300Vrms |
| Voltage - Output (Max) | 70V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 2µs, 2µs |
| Environment and package | |
| Grade | - |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 100°C |

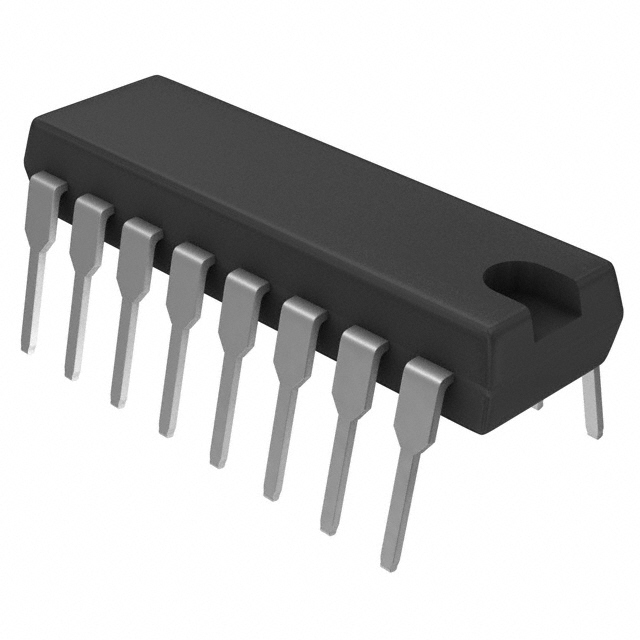

| Package / Case | 16-DIP (0.400", 10.16mm) |
| Qualification | - |
| Supplier Device Package | 16-DIP |
| Other | |
| Input Type | DC |
| Manufacturer | Isocom Components 2004 LTD |
| Output Type | Transistor |
| Packaging | Tube |
| Part Status | Active |
| Series | ILQ |
| Turn On / Turn Off Time (Typ) | - |
| Vce Saturation (Max) | 400mV |
