Diodes IncorporatedUnited States

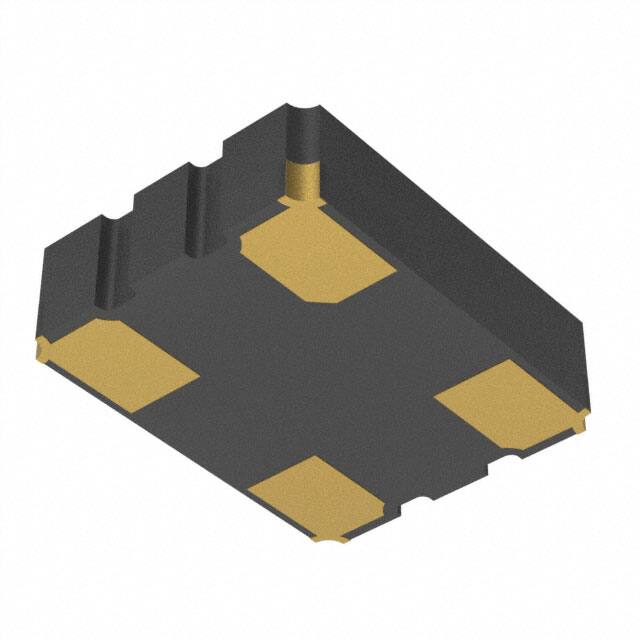

XTAL OSC XO 125.0000MHZ CMOS SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency125 MHz
Frequency stability50 ppm
Supply voltage≥ 3.3 V
Output typeCMOS
| Power | |
|---|---|
| Current - Supply (Disable) (Max) | 100µA |
| Current - Supply (Max) | 40mA |
| Voltage - Supply | 3.3V |
| AC and DC characteristics | |
| Frequency | 125 MHz |
| Frequency Stability | ±50ppm |
| Spread Spectrum Bandwidth | - |
| Environment and package | |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Other | |
| Absolute Pull Range (APR) | - |
| Base Product Number | HX2511 |
| Base Resonator | Crystal |
| Function | Enable/Disable |
| Mfr | Diodes Incorporated |
| Output | CMOS |
| Product Status | Active |
| Ratings | - |
| Series | SaRonix-eCera™ HX |
| Type | XO (Standard) |
