High voltage DC load control.; High performance power relay for xEV vehicle.; Complies with RoHS-Directive 2011/65/EU.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage12 ~ 24 V
| Power | |
|---|---|
| Coil voltage | DC | 12~24V |
| Max. Allowable Contact current(A) | 40A |
| Power consumption | DC | 1.8W (Holding:0.36W) |
| Other | |
| 1. | HV015 | — | Basic series designation |
| 2. | Blank | — | Plug-in terminal |
| 3. | 1A | — | Form A, single-pole, double-make(SPDM) |
| 4. | H | — | Contact material Ag alloy |
| 5. | C | — | Flux tight |
| 6. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | —— |
| Contact and coil | 2500VAC |
| Contact circuits | —— |
| Contact configuration | 1A |
| Contact rating | Resistive load | 40A 400VDC |
| Dielectric strength | Open contact | 2000VAC |
| Electrical(Min.) | 5×103 |
| Life expectancy | Mechanical(Min.) | 5×105 |

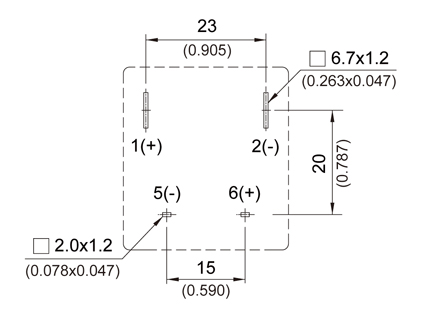

| Outline (L×W×H) mm | 35.3 × 31.6 × 32 |
