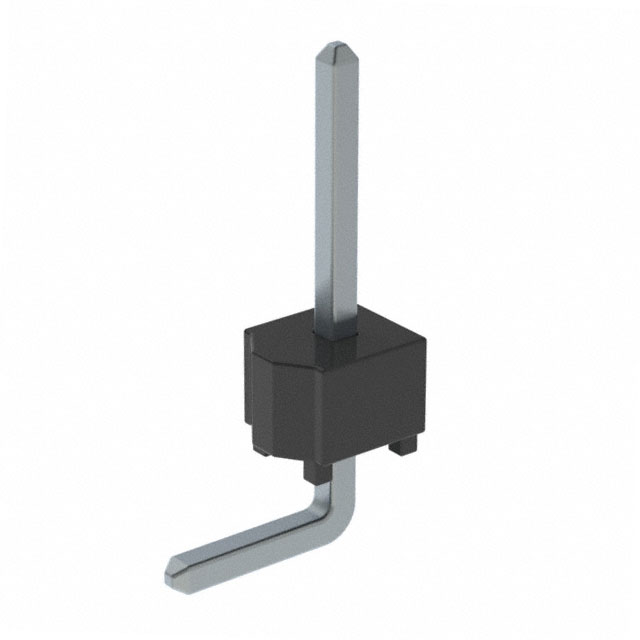

CONN HEADER R/A 1POS
All alternatives
View full reportTechnical parameters
Key specs
Positions1
Rows1
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.122" (3.10mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -55°C ~ 105°C |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | HTSW-101 |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.090" (2.29mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Samtec Inc. |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | - |
| Pitch - Mating | - |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | HTSW |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Termination | Solder |
