MeritekUnited States

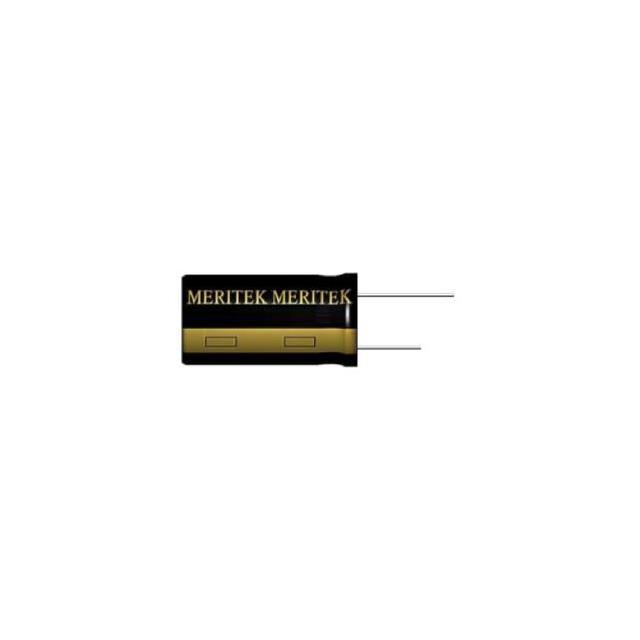

CAP ALUM 10UF 20% 35V RADIAL TH
All alternatives
View full reportTechnical parameters
Key specs
Capacitance10 µF
Rated voltage35 V
Tolerance20 %
Lifetime2 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 35 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 65.8 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 47 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Package | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | - |
| Lead Spacing | 0.079" (2.00mm) |
| Mfr | Meritek |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | HT |
| Tolerance | ±20% |
