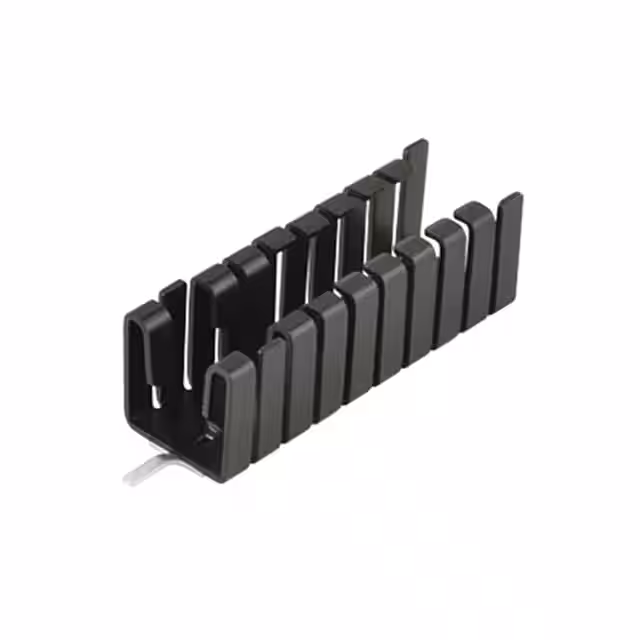

HEATSINK TO-220 4W ALUMINUM
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.500" (12.70mm) |
| Package | Box |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 4.0W@75°C |
| Thermal Resistance @ Forced Air Flow | 5.01°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 18.63°C/W |
| Other | |
| Attachment Method | PC Pin |
| Base Product Number | HSS-B20 |
| Diameter | - |
| Length | 1.500" (38.10mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | CUI Devices |
| Product Status | Active |
| Series | HSS |
| Shape | Rectangular, Fins |
| Type | Board Level |
| Width | 0.504" (12.80mm) |
