HOA1406-003
Honeywell Sensing and Productivity SolutionsUnited States

HOA1406-003

ObsoleteOptical Sensors - Reflective - Analog Output

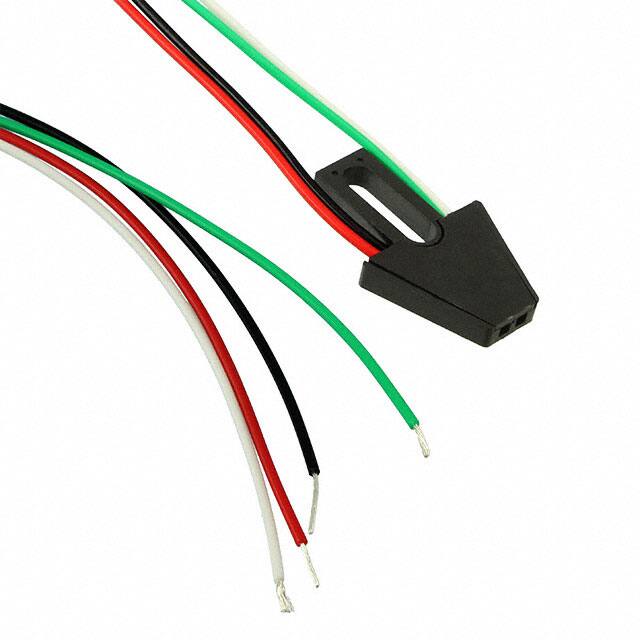

SNSR OPTO TRANS 3.05MM REFL L-MT

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Collector (Ic) (Max)30 mA
Current - DC Forward (If) (Max)50 mA
Voltage - Collector Emitter Breakdown (Max)15 V
Environment and package
Mounting TypeChassis Mount
Operating Temperature-40°C~100°C
PackageBulk
Package / CaseModule, Pre-Wired
Other
MfrHoneywell Sensing and Productivity Solutions
Output TypePhotodarlington
Product StatusObsolete
Response Time15µs, 15µs
Sensing Distance0.120" (3.05mm)
Sensing MethodReflective
Series-

Documents

No documents are linked to this part yet.
