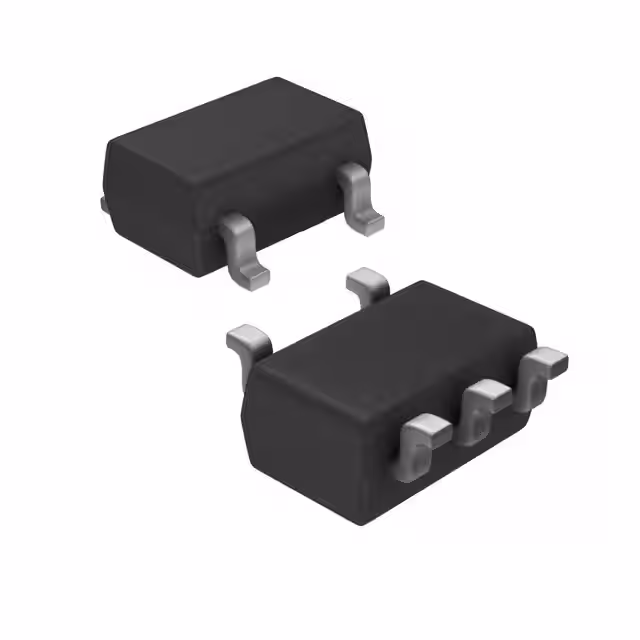

TRANS 2PNP 120V 0.1A SMV
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 300mW |
| Voltage - Collector Emitter Breakdown (Max) | 120V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 6V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SMV |
| Other | |
| Base Product Number | HN4A51 |
| Mfr | Toshiba Semiconductor and Storage |
| Product Status | Active |
| Series | - |
| Transistor Type | 2 PNP (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 1mA, 10mA |
