Analog Devices Inc.United States
VCO 4.5GHZ/9GHZ 2-13V 5X5MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (dBm) | -6±2, 11±3, 12.5±2.5 |
| Tuning Voltage (VDC) | 2 V ~ 13 V |
| Voltage - Supply | 5V |
| AC and DC characteristics | |
| Frequency - Center | 4.5GHz, 9GHz |
| Frequency Range | 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz |
| Phase Noise Typ (dBc/Hz) | -116 |
| Environment and package | |
| Height | 0.039" (1.00mm) |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

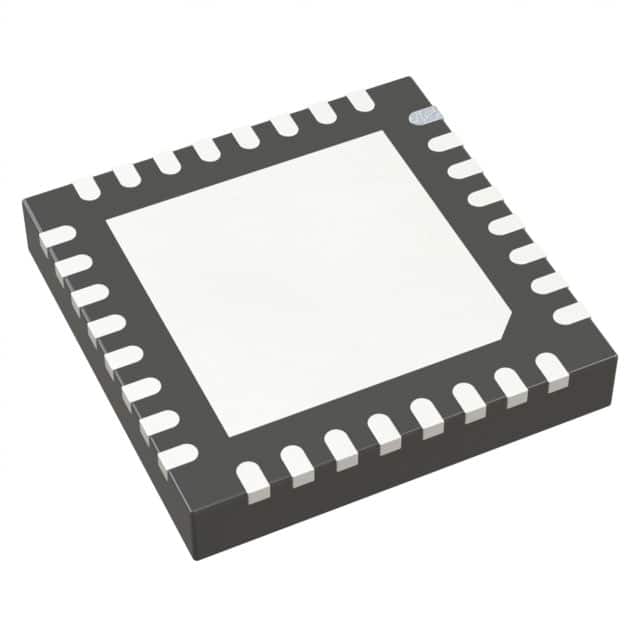

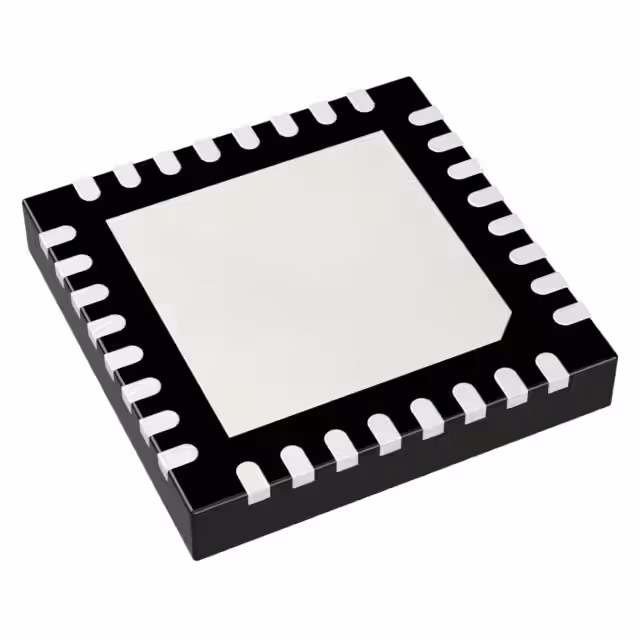

| Package / Case | 32-VFQFN Exposed Pad |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Other | |
| 2nd Harmonic, Typ (dBc) | 15 |
| Base Product Number | HMC510 |
| Icc Max | 360mA |
| Mfr | Analog Devices Inc. |
| Product Status | Active |
| Pushing (MHz/V) | 20 |
| Series | - |
