Analog Devices Inc.United States
VCO 4.15GHZ/8.3GHZ 2-13V 5X5MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (dBm) | 7.5±2.5, 12.5±2.5 |
| Tuning Voltage (VDC) | 2 V ~ 13 V |
| Voltage - Supply | 5V |
| AC and DC characteristics | |
| Frequency - Center | 4.15GHz, 8.3GHz |
| Frequency Range | 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz |
| Phase Noise Typ (dBc/Hz) | -115 |
| Environment and package | |
| Height | 0.039" (1.00mm) |
| Operating Temperature | -40°C~85°C |
| Package | Strip |

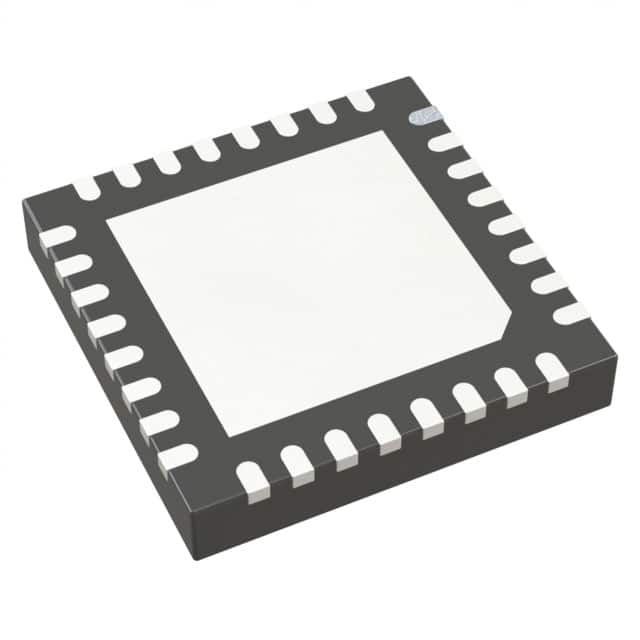

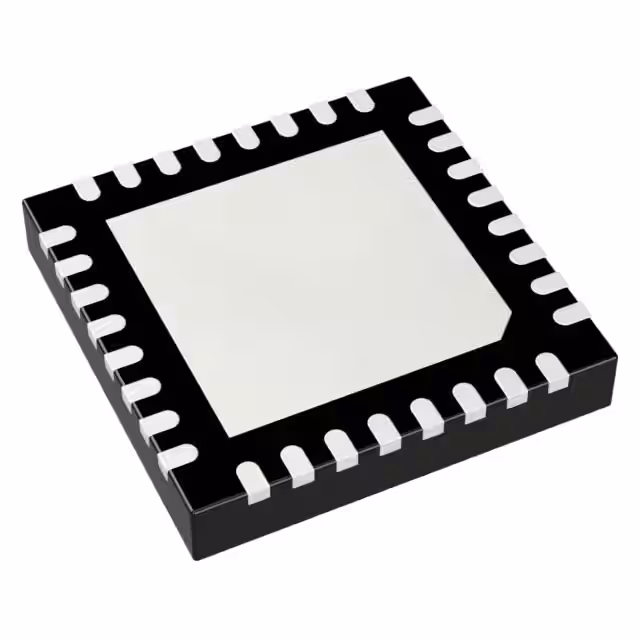

| Package / Case | 32-VFQFN Exposed Pad |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Other | |
| 2nd Harmonic, Typ (dBc) | 10 |
| Base Product Number | HMC509 |
| Icc Max | 270mA |
| Mfr | Analog Devices Inc. |
| Product Status | Active |
| Pushing (MHz/V) | 10 |
| Series | - |
