Analog Devices Inc.United States

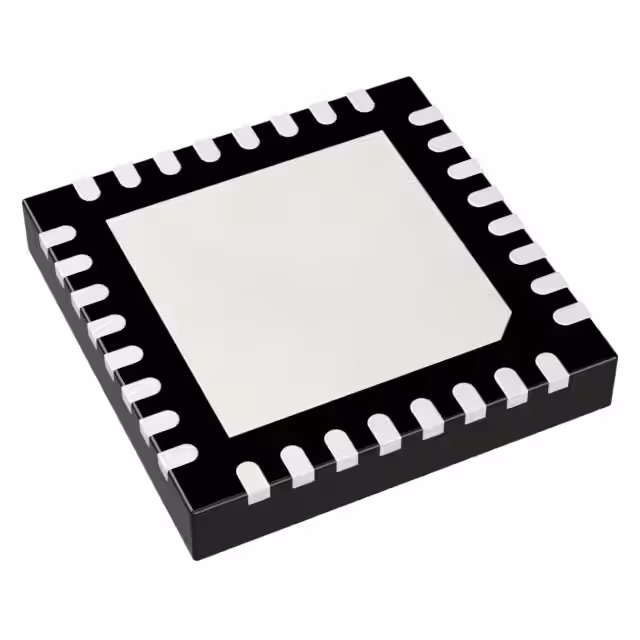

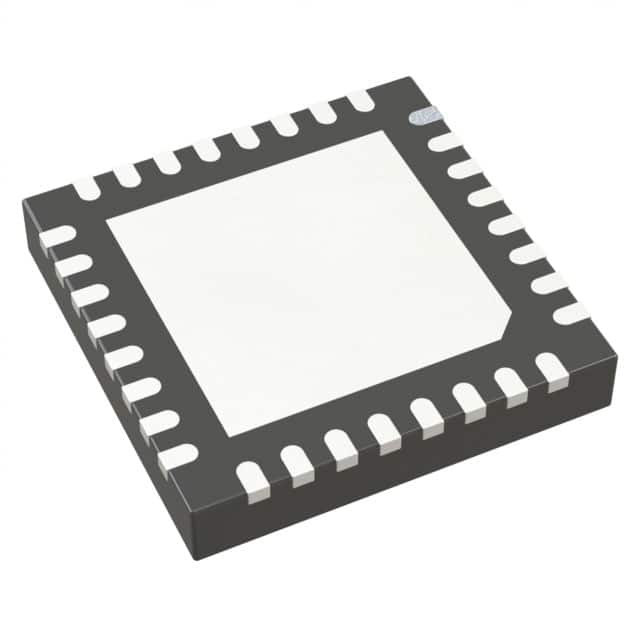

VCO 3.857GHZ/7.75GHZ 2-13V 5X5MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (dBm) | 7 ±3, 14.5 ±2.5 |
| Tuning Voltage (VDC) | 2 V ~ 13 V |
| Voltage - Supply | 5V |
| AC and DC characteristics | |
| Frequency - Center | 3.857GHz, 7.75GHz |
| Frequency Range | 3.65 ~ 4.1GHz, 7.3 ~ 8.2GHz |
| Phase Noise Typ (dBc/Hz) | -116 |
| Environment and package | |
| Height | 0.039" (1.00mm) |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Other | |
| 2nd Harmonic, Typ (dBc) | 20 |
| Base Product Number | HMC508 |
| Icc Max | 280mA |
| Mfr | Analog Devices Inc. |
| Product Status | Obsolete |
| Pushing (MHz/V) | 10 (Typ) |
| Series | HMC508 |
