LEM USA Inc.Switzerland

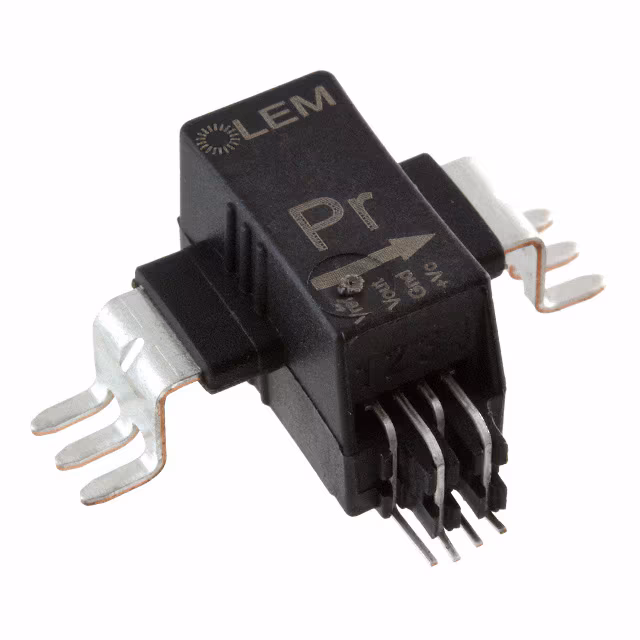

SENSOR CURRENT HALL 50A AC/DC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Sensing | 50A |
| Current - Supply (Max) | 25mA |
| Number of Channels | 1 |
| Voltage - Supply | 5V |
| AC and DC characteristics | |
| Accuracy | ±1% |
| Frequency | 400kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Tray |
| Package / Case | Module |
| Supplier Device Package | - |
| Other | |
| For Measuring | AC/DC |
| Linearity | ±0.5% |
| Mfr | LEM USA Inc. |
| Output | Ratiometric, Voltage |
| Polarization | Bidirectional |
| Product Status | Active |
| Response Time | 2.5µs |
| Sensitivity | 16mV/A |
| Sensor Type | Hall Effect, Open Loop |
| Series | HLSR-SM |
Documents
No documents are linked to this part yet.
