Holt Integrated Circuits Inc.United States

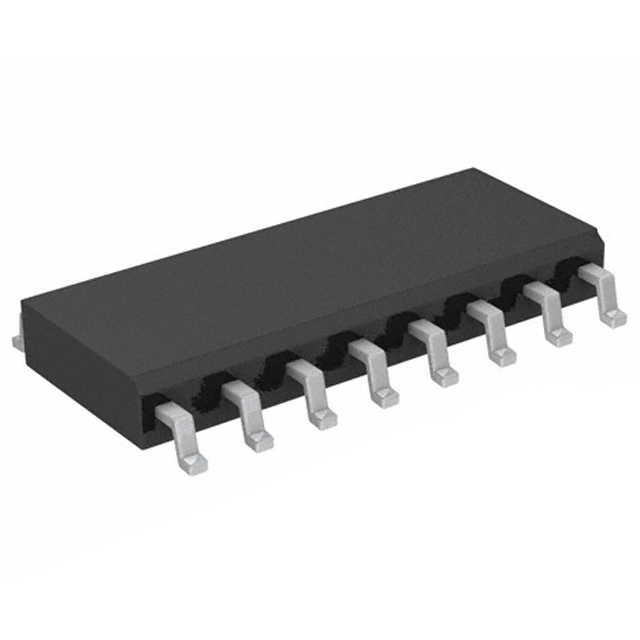

IC SWITCH SPST-NOX4 17OHM 16SOIC
All alternatives
View full reportTechnical parameters
Key specs
Switch circuitSPST
Circuits4
On-resistance17 ΩMax
Supply voltage3.3 ~ 15 V
| Power | |
|---|---|
| Channel Capacitance (CS(off), CD(off)) | 5pF, 20pF |
| Channel-to-Channel Matching (ΔRon) | - |
| Current - Leakage (IS(off)) (Max) | 5nA (Max) |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 15V |
| Voltage - Supply, Single (V+) | 3.3V ~ 15V |
| AC and DC characteristics | |
| -3db Bandwidth | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tube |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Other | |
| Base Product Number | HI-8190 |
| Charge Injection | 4pC |
| Crosstalk | - |
| Mfr | Holt Integrated Circuits Inc. |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 17Ohm |
| Product Status | Active |
| Series | - |
| Switch Circuit | SPST - NO |
| Switch Time (Ton, Toff) (Max) | 35ns, 20ns |
