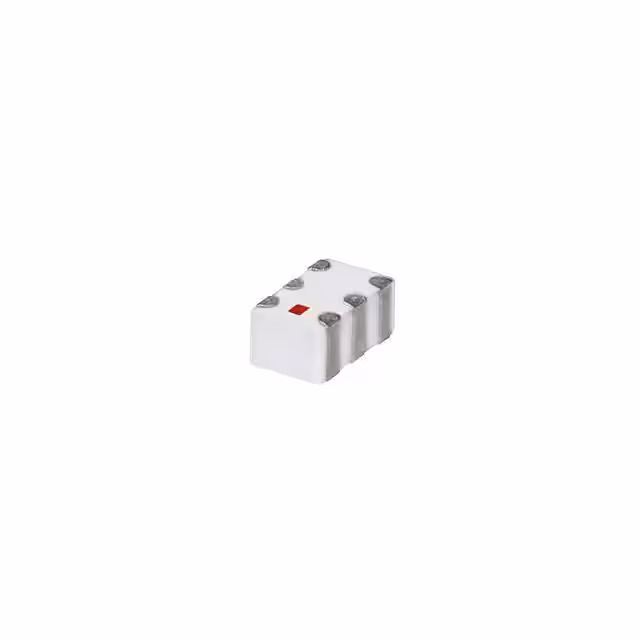

LTCC HPF, 8200 - 21000 MHZ
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Bandwidth | 12.8 GHz |
| Frequency | 7.6GHz (Cutoff) |
| Impedance | 50Ohm |
| Environment and package | |
| Height (Max) | 0.024" (0.61mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Other | |
| Filter Type | High Pass |
| Insertion Loss | 1.5dB |
| Mfr | Mini-Circuits |
| Product Status | Active |
| Series | - |
