Broadcom LimitedUnited States

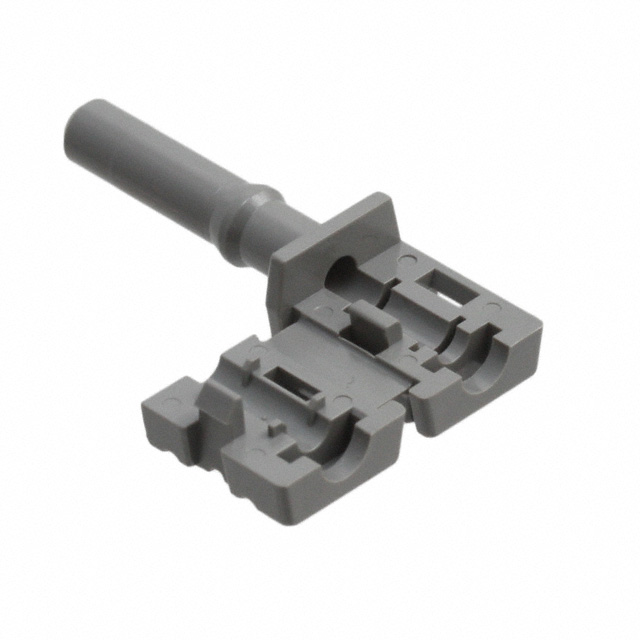

CONN FIBER PLUG SMPLX 1000UM
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C ~ 85°C |
| Package | Bulk |
| Other | |
| Attenuation - Typ | - |
| Base Product Number | HFBR-4535 |
| Body Material | Plastic |
| Boot Color | - |
| Cable Diameter | 2.2mm |
| Connector Style | - |
| Connector Type | Plug |
| Fastening Type | Snap-In |
| Features | Crimpless |
| Ferrule Material | Plastic |
| Fiber Cladding Diameter | 1000µm |
| Fiber Core Diameter | - |
| Housing Color | Gray |
| Housing Material | - |
| Ingress Protection | - |
| Mating Cycles | - |
| Mfr | Broadcom Limited |
| Mode | Singlemode |
| Product Status | Active |
| Reflection | - |
| Series | HFBR |
| Simplex/Duplex | Simplex |
