NXP SemiconductorsNetherlands

HEF40106BTD

Gates and Inverters14-lead SOIC

HEX INVERTING SCHMITT TRIGGER 14-SOIC

HEF40106BTD is a hex inverting Schmitt trigger with a supply voltage range of 3V to 15V, in a 14-pin SOIC package, featuring enhanced noise immunity.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Logic typeSchmitt trigger
Elements6
Inputs6
Supply voltage3 ~ 15 V

Datasheet-verified parameters

9 items
ParameterValue and test conditionsSource
Logic typeHex inverting Schmitt trigger
Units6
Inputs6
Supply voltage3 V to 15 V
Package14-lead SOIC; plastic (SOT109-1)
Operating temperature-40 °C to +85 °C
Hysteresis voltageMin 0.9 V, Typ 1.8 V (VDD = 15 V, Tamb = 25 °C)
Positive-going input voltageMin 4.9 V, Typ 8.3 V, Max 11 V (VDD = 15 V, Tamb = 25 °C)
Negative-going input voltageMin 4 V, Typ 6.5 V, Max 10.1 V (VDD = 15 V, Tamb = 25 °C)
All parameters (4)ExpandCollapse
Power
Hysteresis voltage0,5 V (Min)
negative-going input voltage1,5 V (Min)
Switching levels positive-going input voltage2 V (Min)
Environment and package
Package14-lead SO; plastic (SOT108-1)

Pinout and package

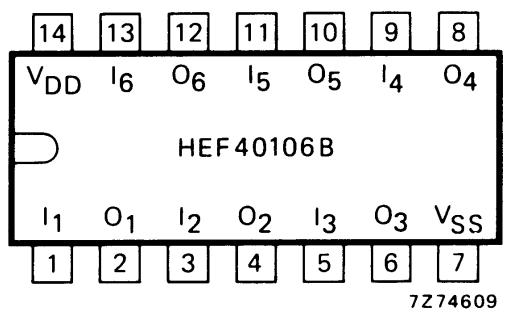

Fig.2 Pinning diagram.
Fig.2 Pinning diagram.
Package: 14-lead SOIC; plastic (SOT109-1)
PinNameFunctionSource
1I1(Input 1)
2O1(Output 1)
3I2(Input 2)
4O2(Output 2)
5I3(Input 3)
6O3(Output 3)
7VSS(Ground)
8VDD(Power Supply)
9I4(Input 4)
10O4(Output 4)
11I5(Input 5)
12O5(Output 5)
13I6(Input 6)
14O6(Output 6)

Documents

DatasheetDatasheet · 87.4 KB · 2026-10-27
