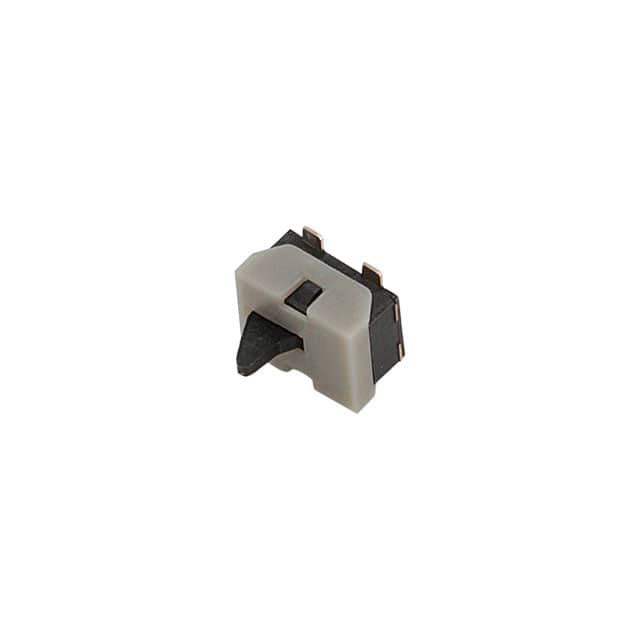

SWITCH DETECTOR SPST-NO 1MA 5V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 1mA (DC) |
| Voltage Rating - DC | 5 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NO |
| Differential Travel | - |
| Electrical Life | 100,000 Cycles |
| Features | Board Guide |
| Ingress Protection | - |
| Mechanical Life | 100,000 Cycles |
| Mfr | C&K |
| Operating Force | 35gf |
| Operating Position | 0.120" (3.05mm) |
| Overtravel | 0.039" (1.0mm) |
| Pretravel | 0.012" (0.3mm) |
| Product Status | Active |
| Release Force | - |
| Series | HDT |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
