Peerless by TymphanyUnited States

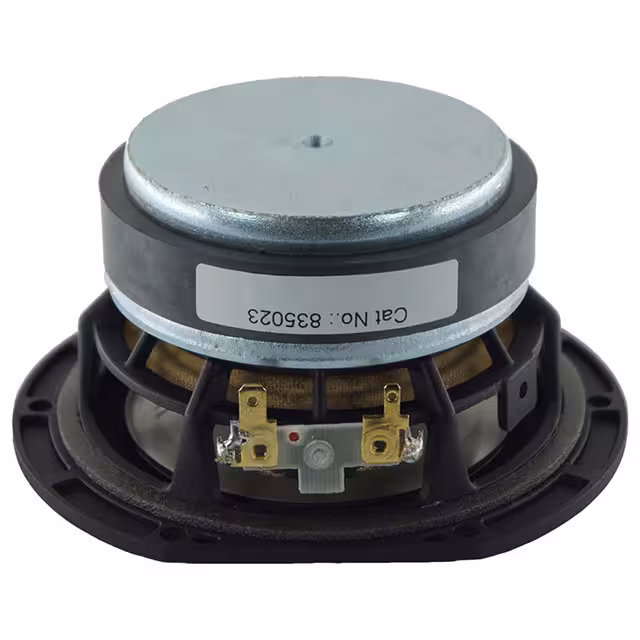

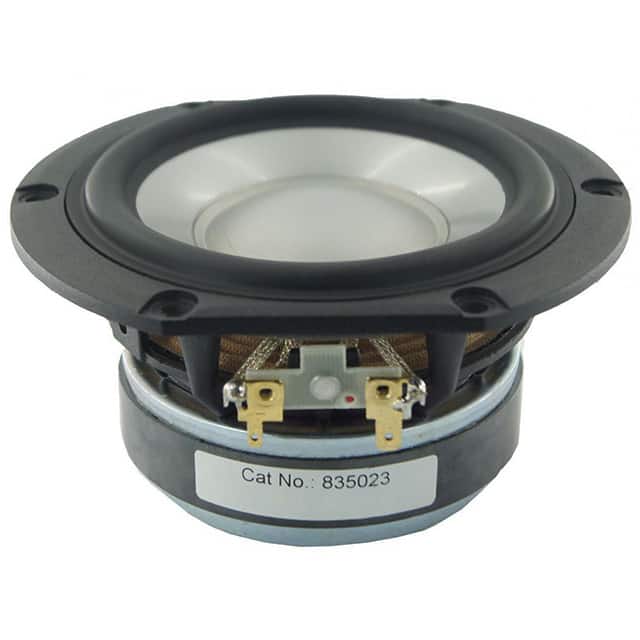

SPEAKER 8OHM 30W TOP PORT 82.6DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Rated | 30 W |
| AC and DC characteristics | |
| Frequency Range | 20 Hz ~ 5 kHz |
| Frequency - Self Resonant | 82.18Hz |
| Impedance | 5.78 Ohms |
| Environment and package | |
| Height - Seated (Max) | 2.496" (63.40mm) |
| Package | Bulk |
| Size / Dimension | 4.740" Dia (120.40mm) |
| Other | |
| Efficiency - dBA | 82.60 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Ingress Protection | - |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Mfr | Peerless by Tymphany |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | HDS |
| Shape | Round |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Woofer |
