TT Electronics/Optek TechnologyUnited Kingdom

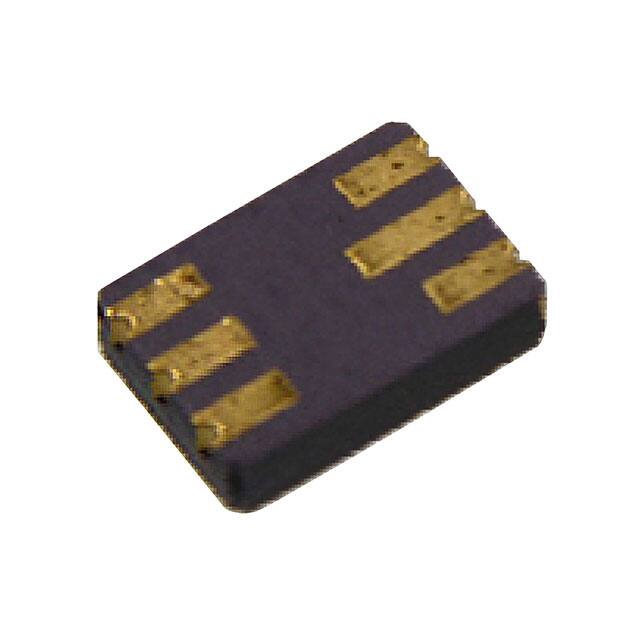

MOSFET N/P-CH 90V 2A/1.1A SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 2A, 1.1A |
| Drain to Source Voltage (Vdss) | 90V |
| Power - Max | 500mW |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | 6-SMD |
| Other | |
| Base Product Number | HCT80 |
| FET Feature | Standard |
| FET Type | N and P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 70pF @ 25V |
| Mfr | TT Electronics/Optek Technology |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 1A, 10V |
| Series | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
