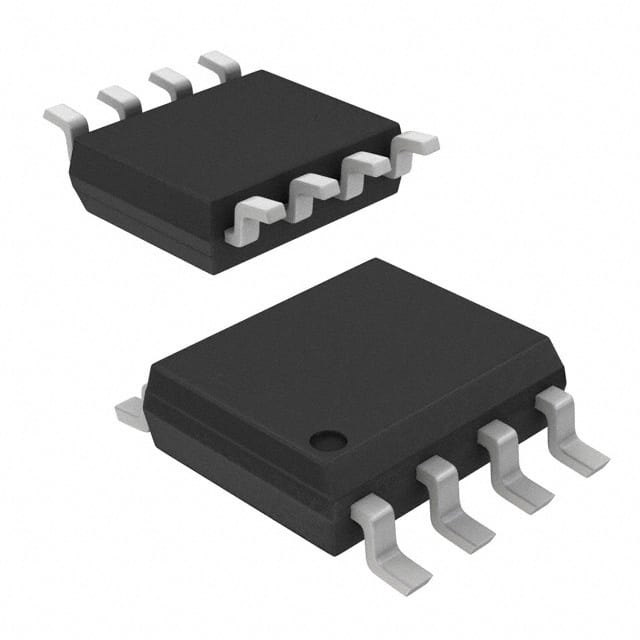

HCPL-061N#060
Broadcom LimitedUnited States

HCPL-061N#060

Optoisolators - Logic Output

OPTOISO 3.75KV OPN COLLECTOR 8SO

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - DC Forward (If) (Max)10mA
Current - Output / Channel50 mA
Number of Channels1
Voltage - Forward (Vf) (Typ)1.3V
Voltage - Isolation3750Vrms
Voltage - Supply4.5V ~ 5.5V
AC and DC characteristics
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Rise / Fall Time (Typ)42ns, 12ns
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTube
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO Tall
Other
Common Mode Transient Immunity (Min)1kV/µs
Data Rate10MBd
Inputs - Side 1/Side 21/0
Input TypeDC
MfrBroadcom Limited
Output TypeOpen Collector, Schottky Clamped
Product StatusDiscontinued at Digi-Key
Series-
