Harwin Inc.United Kingdom

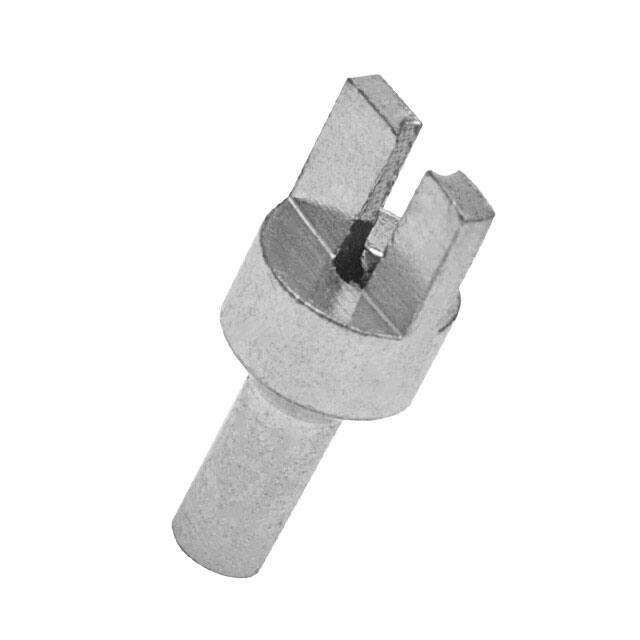

TERM TURRET HOLLOW L=4.75MM TIN
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Hole Diameter | 0.060" ~ 0.063" (1.52mm ~ 1.60mm) |
| Mounting Type | Through Hole |
| Package | Bulk |
| Other | |
| Board Thickness | 0.063" (1.60mm) |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | - |
| Flange Diameter | 0.125" (3.18mm) |
| Insulation | Non-Insulated |
| Insulation Color | - |
| Length - Above Board | 0.187" (4.75mm) |
| Length - Below Flange | 0.094" (2.39mm) |
| Length - Overall | 0.281" (7.14mm) |
| Material - Insulation | - |
| Mfr | Harwin Inc. |
| Number of Turrets | Single |
| Product Status | Obsolete |
| Series | - |
| Staking Side ID | 0.042" ~ 0.043" (1.07mm ~ 1.09mm) |
| Staking Side OD | 0.059" ~ 0.060" (1.50mm ~ 1.52mm) |
| Terminal Type | Single End, Fork, Hollow |
| Termination | Swage |
