Harwin Inc.United Kingdom

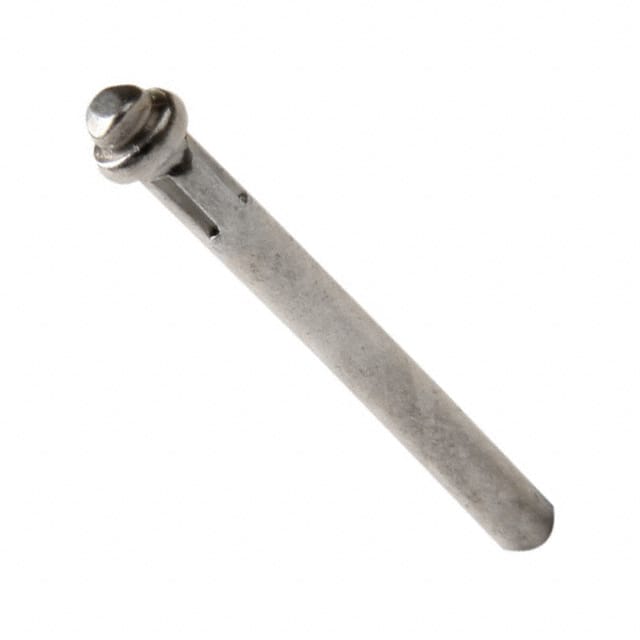

CONN PC PIN CIRC 0.050DIA TIN
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Hole Diameter | 0.055" ~ 0.059" (1.40mm ~ 1.50mm) |
| Mounting Type | Through Hole |
| Package | Bulk |
| Pin Size - Above Flange | 0.050" (1.27mm) Dia |
| Pin Size - Below Flange | - |
| Other | |
| Board Thickness | 0.063" ~ 0.094" (1.60mm ~ 2.39mm) |
| Contact Finish | Tin |
| Contact Finish Thickness | 300.0µin (7.62µm) |
| Contact Material | Brass |
| Flange Diameter | 0.088" (2.24mm) |
| Insulation | Non-Insulated |
| Insulation Color | - |
| Length - Above Flange | 0.449" (11.40mm) |
| Length - Below Flange | 0.030" (0.76mm) |
| Length - Overall | 0.504" (12.80mm) |
| Material - Insulation | - |
| Mfr | Harwin Inc. |
| Product Status | Obsolete |
| Series | - |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
