Curtis IndustriesUnited States

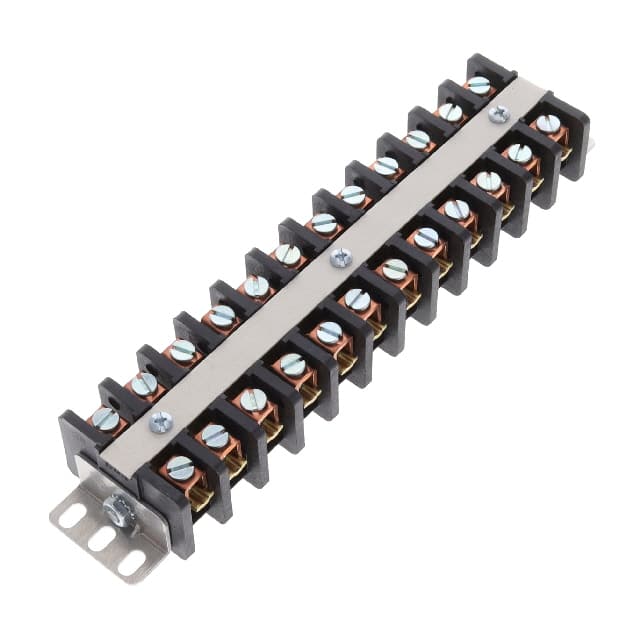

CONN BARRIER STRP 12CIRC 0.652"
All alternatives
View full reportTechnical parameters
Key specs
Rows2
Pitch16.56 mm
Current rating75 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 75A |
| Voltage Rating | 600V |
| Environment and package | |
| Mounting Type | Chassis, Panel |
| Operating Temperature | 130°C |
| Package | Bulk |
| Other | |
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Color | - |
| Features | Flange |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyester Thermoplastic |
| Mfr | Curtis Industries |
| Number of Circuits | 12 |
| Number of Rows | 2 |
| Number of Wire Entries | 24 |
| Pitch | 0.652" (16.56mm) |
| Product Status | Active |
| Series | H |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | - |
| Terminal Screw Material | - |
| Top Termination | Screws |
| Wire Gauge | 4-16 AWG |
Documents
No documents are linked to this part yet.
