Sprague-GoodmanUnited States

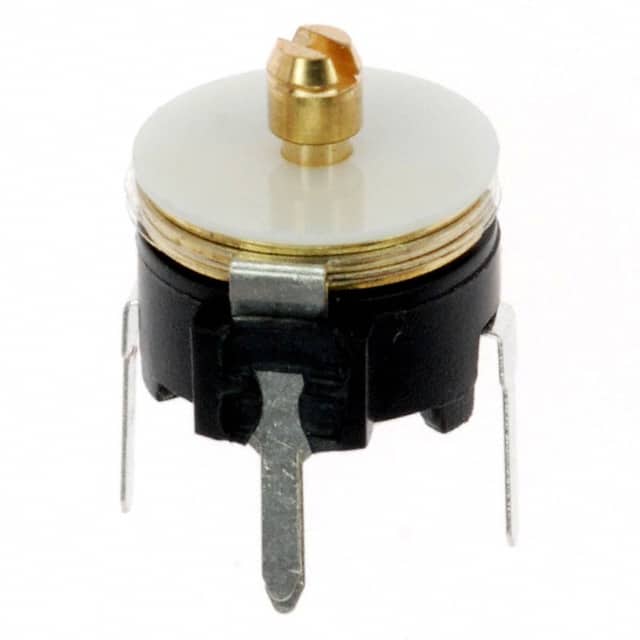

CAP TRIMMER 3-40PF 100V TH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 100 V |
| Environment and package | |

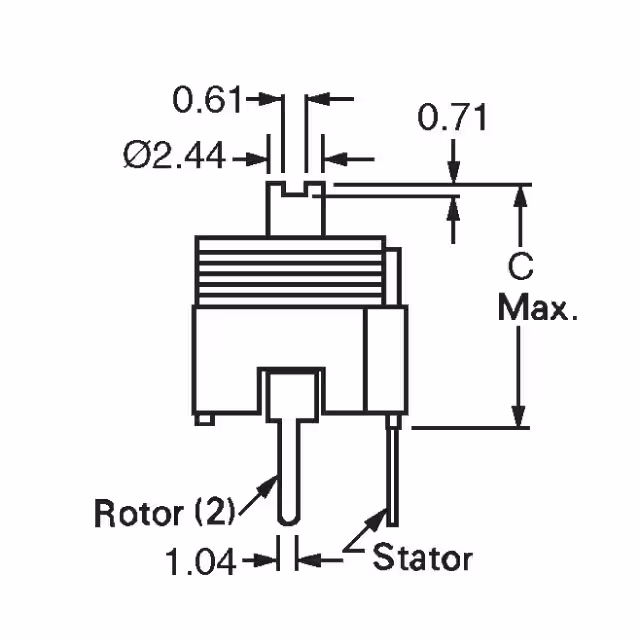

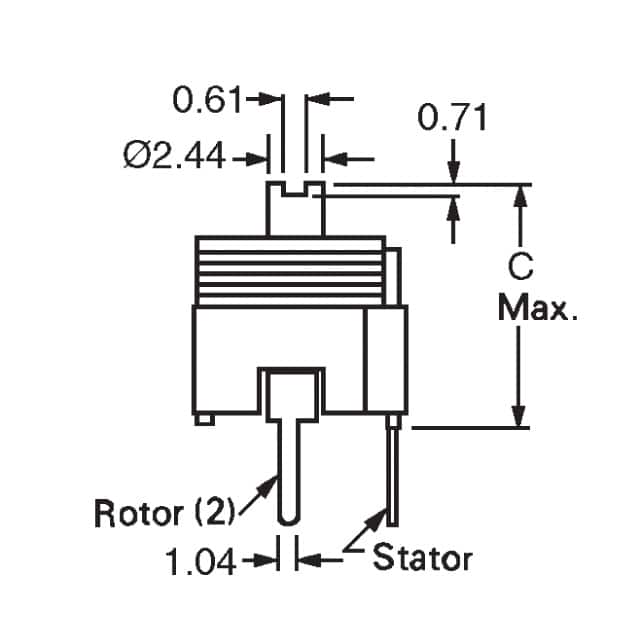

| Height - Seated (Max) | 0.402" (10.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~70°C |
| Package | Bulk |

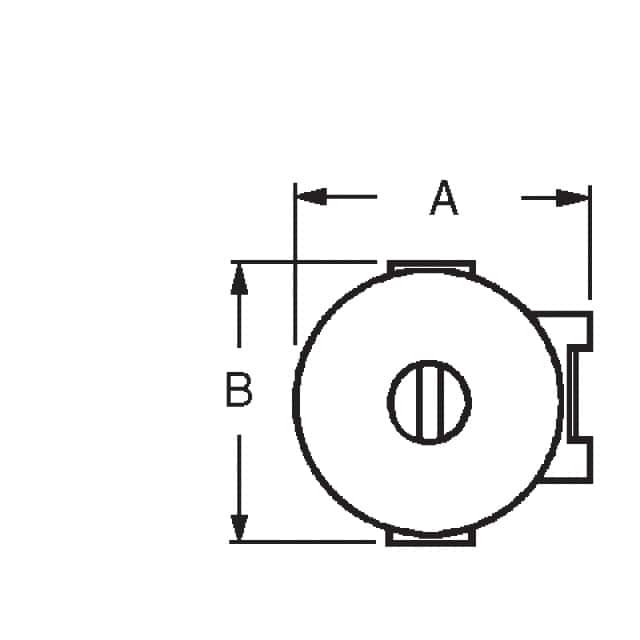

| Size / Dimension | 0.433" Dia (11.00mm) |
| Other | |
| Adjustment Type | Top and Bottom |
| Capacitance Range | 3 ~ 40pF |
| Dielectric Material | Polypropylene (PP) |
| Features | General Purpose |
| Mfr | Sprague-Goodman |
| Product Status | Obsolete |
| Q @ Freq | 1000 @ 1MHz |
| Series | FILMTRIM® |
