OSRAM Opto (ams OSRAM)Germany

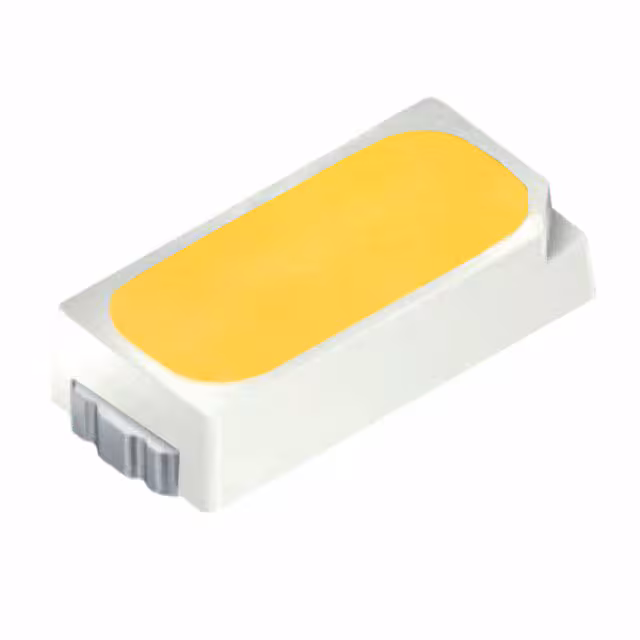

GW JCLPS2.EM-HPHR-A232-1-65-R18
LED Lighting - WhiteLED DURIS E3 COOL WHT 5700K 2SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 150mA |
| Current - Test | 65mA |
| Flux @ 25°C, Current - Test | 32lm (28lm ~ 36lm) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 163 lm/W |
| Voltage - Forward (Vf) (Typ) | 3.02V |
| Environment and package | |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |
| Package / Case | 1106 (2815 Metric) |
| Size / Dimension | 0.110" L x 0.055" W (2.80mm x 1.40mm) |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 42°C/W |
| Other | |
| CCT (K) | 5700K |
| Color | White, Cool |
| CRI (Color Rendering Index) | 80 |
| Mfr | OSRAM Opto (ams OSRAM) |
| Product Status | Discontinued at Digi-Key |
| Series | DURIS® E 3 |
| Viewing Angle | 120° |
