View full reportTechnical parameters
| Environment and package | |
|---|---|

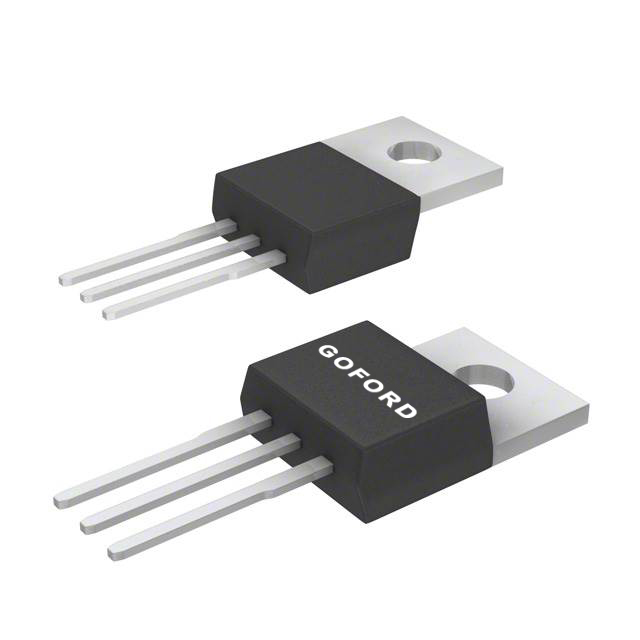

| Package | TO-220 |
| Other | |
| Ciss (pF) | 5100 |
| Compliance | Automotive,RoHS,Halogen Free |
| Crss (pF) | 55 |
| ESD Diode | NO |
| Id (A) | 120 |
| Pd (W) | 180 |
| Qgd (nC) | 17 |
| Qg (nC) | 81 |
| Qgs (nC) | 29 |
| Rds(on) mΩ(max) @Vgs=10V | 5 |
| Rds(on) mΩ(typ) @Vgs=10V | 4.2 |
| Technology | SGT |
| Type | N |
| Vds (V) | 100 |
| Vgs(th) max(V) | 4 |
| Vgs (V) | ±20 |
