View full reportTechnical parameters
| Environment and package | |
|---|---|

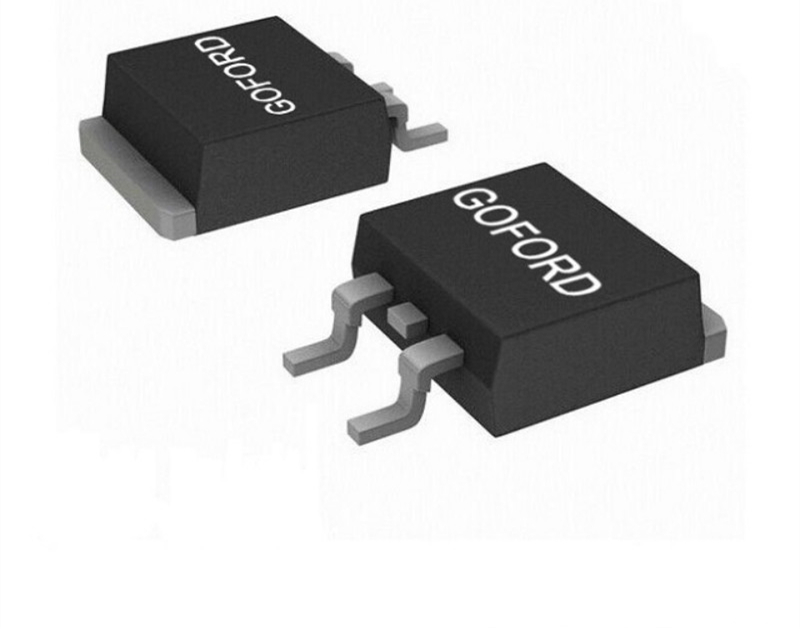

| Package | TO-263 |
| Other | |
| Ciss (pF) | 5050 |
| Compliance | Automotive,RoHS,Halogen Free |
| Crss (pF) | 55 |
| ESD Diode | NO |
| Id (A) | 143 |
| Pd (W) | 275 |
| Qgd (nC) | 17 |
| Qg (nC) | 75 |
| Qgs (nC) | 30 |
| Rds(on) mΩ(max) @Vgs=10V | 5.3 |
| Rds(on) mΩ(typ) @Vgs=10V | 4.3 |
| Technology | SGT |
| Type | N |
| Vds (V) | 150 |
| Vgs(th) max(V) | 4 |
| Vgs (V) | ±20 |
