Storm InterfaceUnited Kingdom
SWITCH KEYPAD 4 KEY 0.05A 24V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Illumination Voltage (Nominal) | 1.8, 2.2 VDC |
| Environment and package | |
| Mounting Type | Panel Mount, Front or Rear |
| Operating Temperature | -10°C~75°C |
| Package | Bulk |
| Panel Cutout Dimensions | Rectangular - 82.50mm x 25.50mm |
| Other | |
| Approval Agency | CE |
| Features | - |
| Illumination | Illuminated - Red/Green |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Key Color | Transparent |

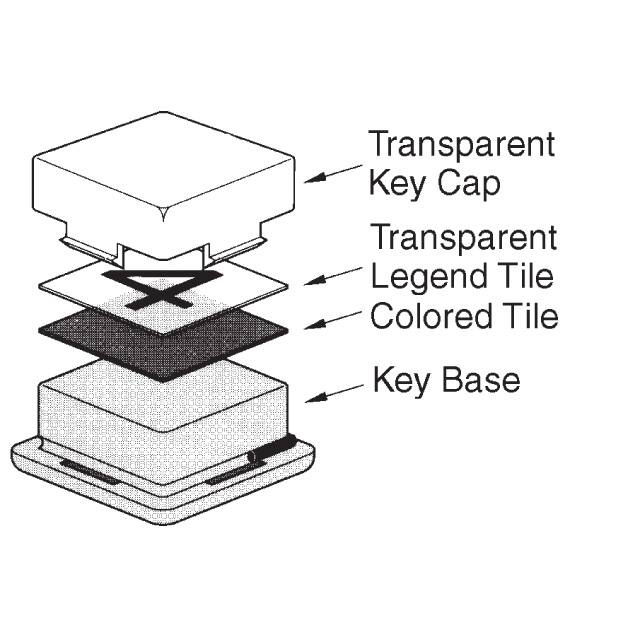

| Key Type | Transparent Key Cap |
| Legend | Customizable (Sold Separate) |
| Legend Color | - |
| Legend Type | Interchangeable |
| Matrix (Columns x Rows) | 1 x 4 |
| Mfr | Storm Interface |
| Number of Keys | 4 |
| Operational Life | 2,000,000 Cycles |
| Output Type | Matrix |
| Product Status | Obsolete |
| Series | GFX Illuminator |
| Switch Type | Conductive Rubber |
| Termination Style | Pin Header |
