SMC Diode SolutionsUnited States

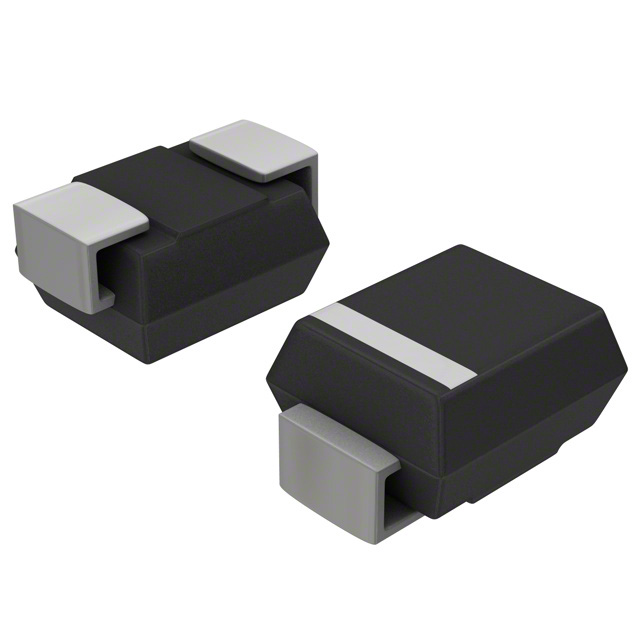

DIODE GEN PURP 1KV 1A SMA
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage1 kV
Average rectified current1 A
Forward voltage1.1 VMax · 1 A
TypeStandardStandard Recovery >500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -65°C~175°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA (DO-214AC) |
| Other | |
| Base Product Number | GS1 |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Diode Type | Standard |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Reverse Recovery Time (trr) | 2.5 µs |
| Series | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
