SurgeUnited States

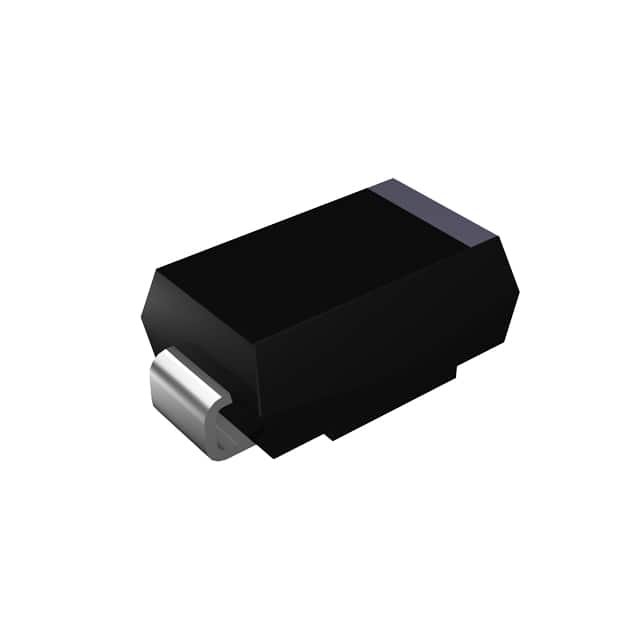

DIODE GEN PURP 1KV 1A DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage1 kV
Average rectified current1 A
Forward voltage1.1 VMax · 1 A
TypeStandardStandard Recovery >500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 1 µA @ 1000 V |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Bag |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Diode Type | Standard |
| Mfr | SURGE |
| Product Status | Active |
| Reverse Recovery Time (trr) | 1 µs |
| Series | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
