CAP CER 22NF 50V X7R 0603
Murata GRM188R71H223KA01D is a 0603 package X7R dielectric ceramic capacitor with 22000pF capacitance and 50Vdc rated voltage, RoHS compliant.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Key specs
Capacitance22 nF
Rated voltage50 V
DielectricX7R
Datasheet-verified parameters
10 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Capacitance | 22000pF | |
| Rated Voltage | 50Vdc | |
| Dielectric | X7R | |
| Package | 0603 | |
| RoHS | RoHS regulation conformity | |
| Length | 1.6mm±0.1mm |
All parameters (7)
| Power | |
|---|---|
| Rated Voltage | 50Vdc |
| Environment and package | |
| Temperature Char. | X7R (EIA), ±15% |
| Other | |
| Capacitance | 22000pF |
| Capacitance Change | ±10% |

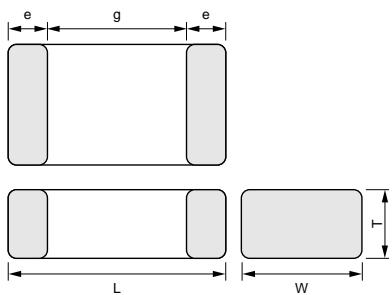

| Length L | 1.6mm±0.1mm |
| Thickness T | 0.8mm±0.1mm |
| Width W | 0.8mm±0.1mm |
