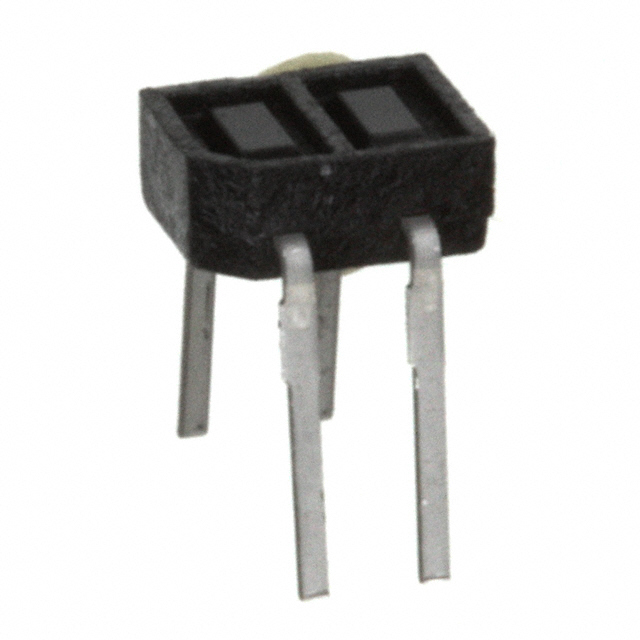

GP2S24BJ000F
Sharp MicroelectronicsJapan

GP2S24BJ000F

ObsoleteReflective - Analog Output

PHOTOINTERRUPTER REFL 0.7MM PCB

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Collector (Ic) (Max)20 mA
Current - DC Forward (If) (Max)50 mA
Voltage - Collector Emitter Breakdown (Max)35 V
Environment and package
Mounting TypeThrough Hole
Operating Temperature-25°C ~ 85°C
PackageTube
Package / CasePCB Mount
Other
MfrSharp Microelectronics
Output TypePhototransistor
Product StatusObsolete
Response Time20µs, 20µs
Sensing Distance0.028" (0.7mm)
Sensing MethodReflective
Series-

Documents

No documents are linked to this part yet.
