EW ElectronicsUnited States

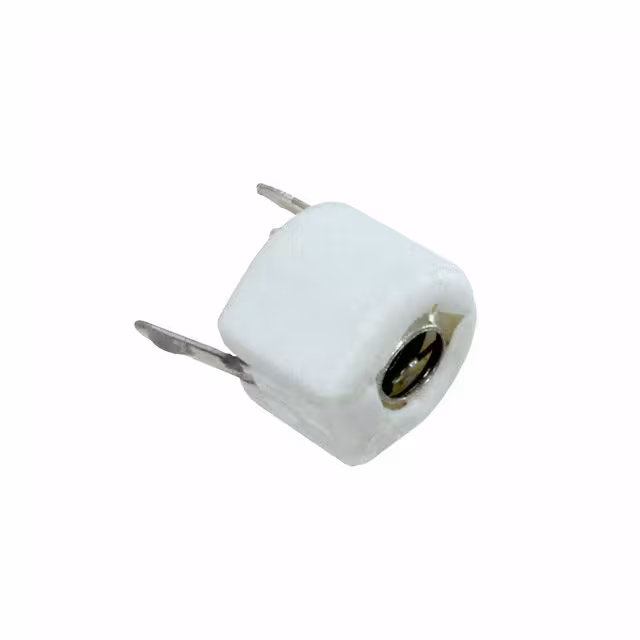

CAP TRIMMER 3-10PF 100V TH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 100 V |
| Environment and package | |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C~85°C |
| Package | Bulk |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Other | |
| Adjustment Type | Top |
| Capacitance Range | 3 ~ 10pF |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Mfr | EW Electronics |
| Product Status | Active |
| Q @ Freq | 300 @ 1MHz |
| Series | SURFTRIM® GKG |
