APEM Inc.France

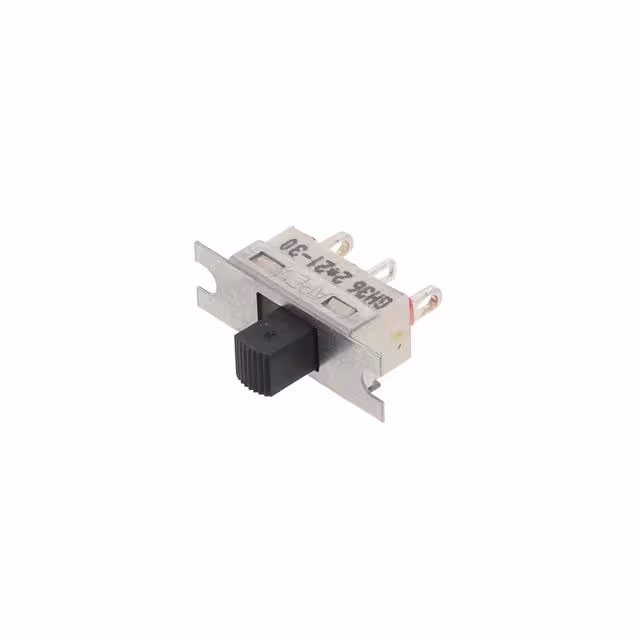

SWITCH SLIDE SPDT 3A 30V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPDT
Switch functionOn-On
Current rating3 AMax
Voltage rating30 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A (DC) |
| Voltage Rating - DC | 30 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -30°C~85°C |
| Package | Bulk |
| Other | |

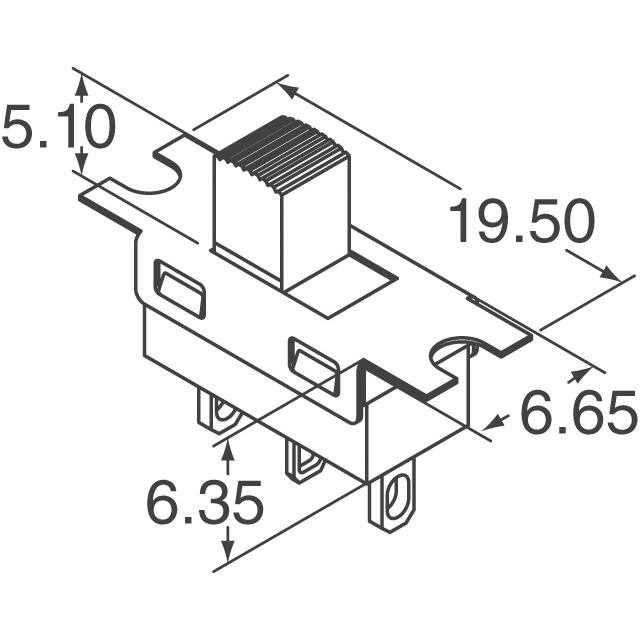

| Actuator Length | 5.10mm |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Type | Standard |
| Base Product Number | GH36S |
| Circuit | SPDT |
| Contact Finish | - |
| Contact Material | Silver (Ag) |
| Contact Timing | Not Specified |
| Electrical Life | 40,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | - |
| Mfr | APEM Inc. |
| Operating Force | - |
| Product Status | Active |
| Series | G |
| Switch Function | On-On |
| Switch Travel | 2.20mm |
| Termination Style | Solder Lug |
