MEAN WELL USA Inc.Taiwan, China

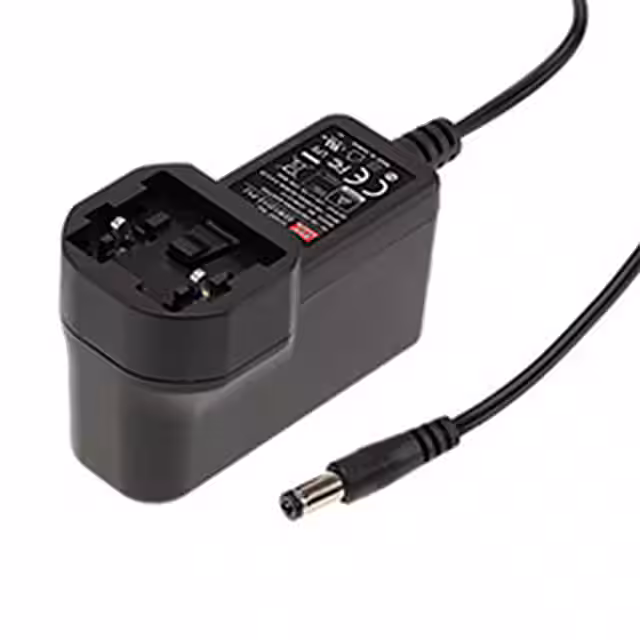

AC/DC WALL MNT ADAPTER 7.5V 12W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage80 ~ 264 V
Output voltage7.5 V
Output current1.6 AMax
Power12 WMax
| Power | |
|---|---|
| Current - Output (Max) | 1.6A |
| No Load Power Consumption | 75mW (Max) |
| Power (Watts) | 12 W |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output | 7.5V |
| Environment and package | |
| Operating Temperature | -20°C~70°C |
| Package | Box |
| Size / Dimension | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CE, cURus, TUV |
| Base Product Number | GEM12I07 |
| Cord Length | 39.4" (1.00m) |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade (Sold Separately) |
| Input Type | Multi-Blade (Sold Separately) |
| Mfr | MEAN WELL USA Inc. |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Polarization | Positive Center |
| Product Status | Active |
| Region Utilized | International |
| Series | GEM12I (12W) |
