Diodes IncorporatedUnited States

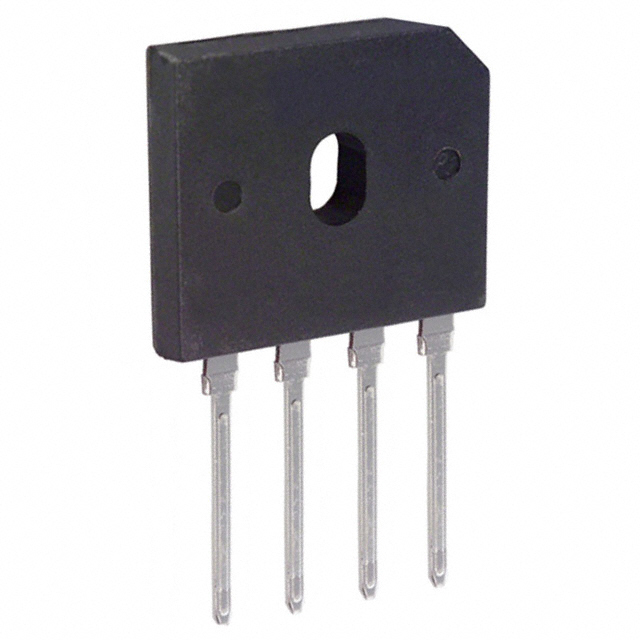

BRIDGE RECT 1PHASE 1KV 8A GBU
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage1 kV
Average rectified current8 A
Forward voltage1 VMax · 4 A
TypeStandard
| Power | |
|---|---|
| Current - Average Rectified (Io) | 8 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 4 A |
| Voltage - Peak Reverse (Max) | 1 kV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU |
| Other | |
| Base Product Number | GBU810 |
| Diode Type | Single Phase |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Technology | Standard |
