Diotec SemiconductorGermany

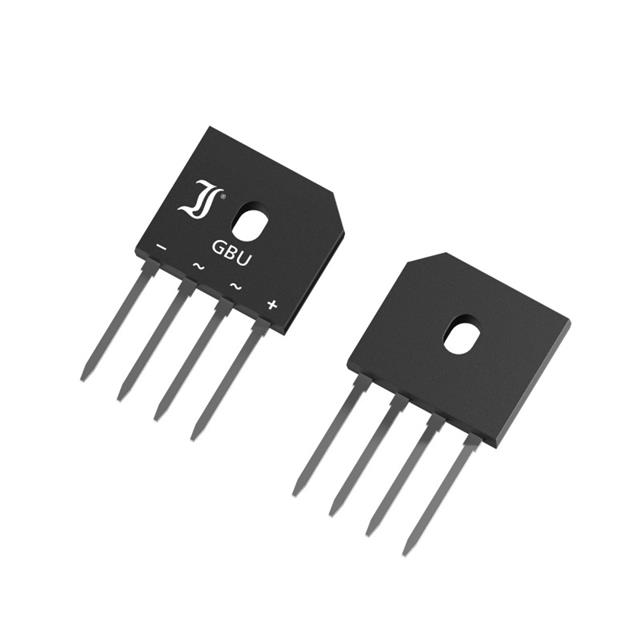

1BRect, 400V, 6A
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage400 V
Average rectified current4.2 A
Forward voltage1 VMax · 6 A
TypeStandard
| Power | |
|---|---|
| Current - Average Rectified (Io) | 4.2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 6 A |
| Voltage - Peak Reverse (Max) | 400 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Package | Box |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU |
| Other | |
| Diode Type | Single Phase |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Technology | Standard |
