SMC Diode SolutionsUnited States

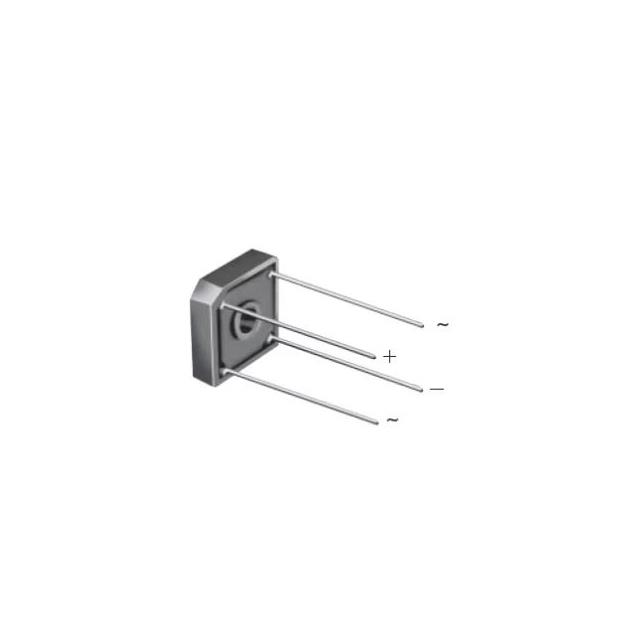

BRIDGE RECT 1P 800V 35A GBPC-W
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage800 V
Average rectified current35 A
Forward voltage1.1 VMax · 17.5 A
TypeStandard
| Power | |
|---|---|
| Current - Average Rectified (Io) | 35 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Voltage - Peak Reverse (Max) | 800 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Box (TB) |
| Package / Case | 4-Square, GBPC-W |
| Supplier Device Package | GBPC-W |
| Other | |
| Base Product Number | GBPC3508 |
| Diode Type | Single Phase |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Series | - |
| Technology | Standard |
