Sprague-GoodmanUnited States

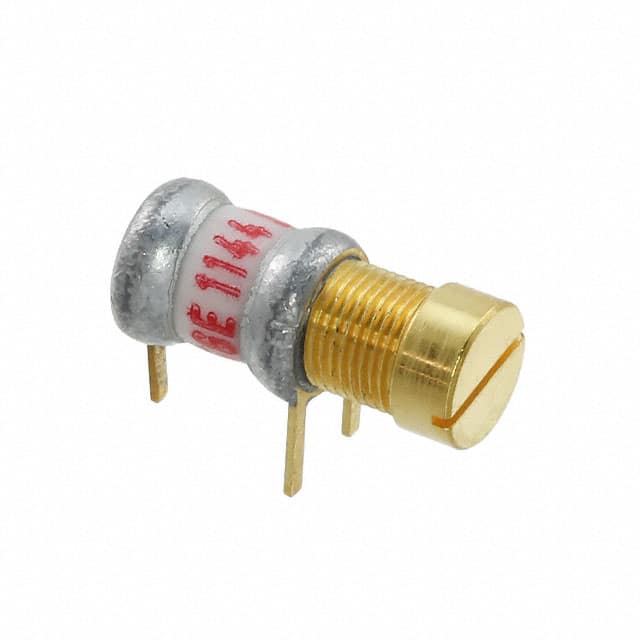

CAP TRIMMER 1-14PF 250V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 250 V |
| Environment and package | |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Mounting Type | User Defined |
| Operating Temperature | -65°C~125°C |
| Package | Bulk |
| Size / Dimension | 0.303" Dia (7.62mm) |
| Other | |
| Adjustment Type | Side |
| Capacitance Range | 1 ~ 14pF |
| Dielectric Material | Air |
| Features | General Purpose |
| Mfr | Sprague-Goodman |
| Product Status | Obsolete |
| Q @ Freq | 5000 @ 100MHz |
| Series | AIRTRIM® GAA |
