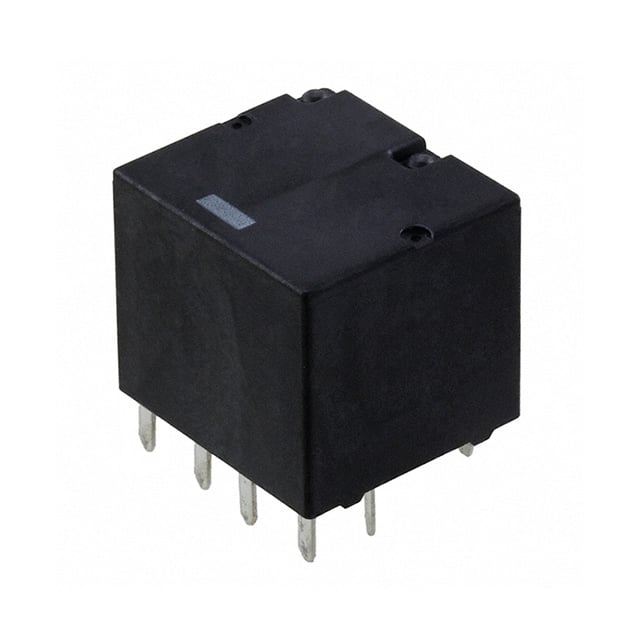

RELAY AUTOMOTIVE SPDT 30A 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Current | 53.3 mA |
| Coil Power | 640mW |
| Coil Voltage | 12VDC |
| Contact Rating (Current) | 30 A |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1 VDC |
| Switching Voltage | 16VDC - Max |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Tray |
| Other | |
| Base Product Number | G8NW |
| Coil Resistance | 225 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) x 2 |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Features | - |
| Mfr | Omron Electronics Inc-EMC Div |
| Operate Time | 10 ms |
| Product Status | Obsolete |
| Release Time | 10 ms |
| Series | G8NW-2 |
| Termination Style | PC Pin |
