AmphenolUnited States

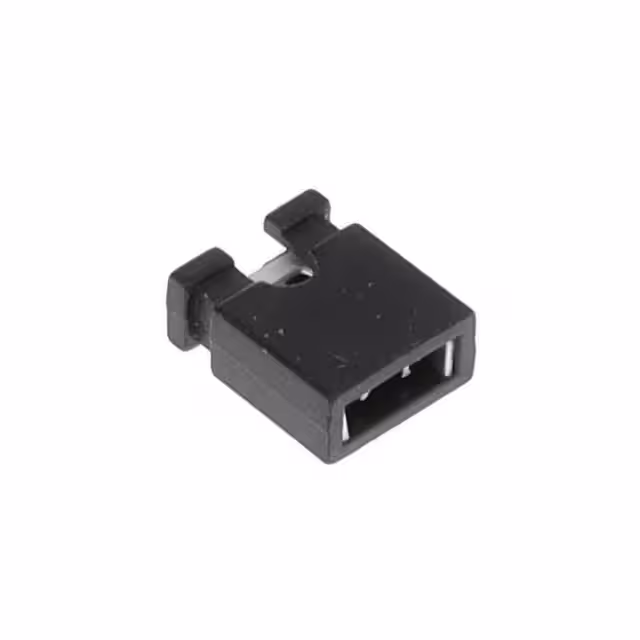

MINI JUMPER,2.54MM PITCH,STR,OPE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Height | 0.236" (6.00mm) |
| Package | Bag |
| Other | |
| Base Product Number | G890110 |
| Color | Black |
| Contact Finish | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Gender | Female Sockets |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Amphenol ICC (Commercial Products) |
| Number of Positions or Pins (Grid) | 2 (1 x 2) |
| Pitch | 0.100" (2.54mm) |
| Product Status | Obsolete |
| Series | G890 |
| Type | Open Top |
Documents
No documents are linked to this part yet.
