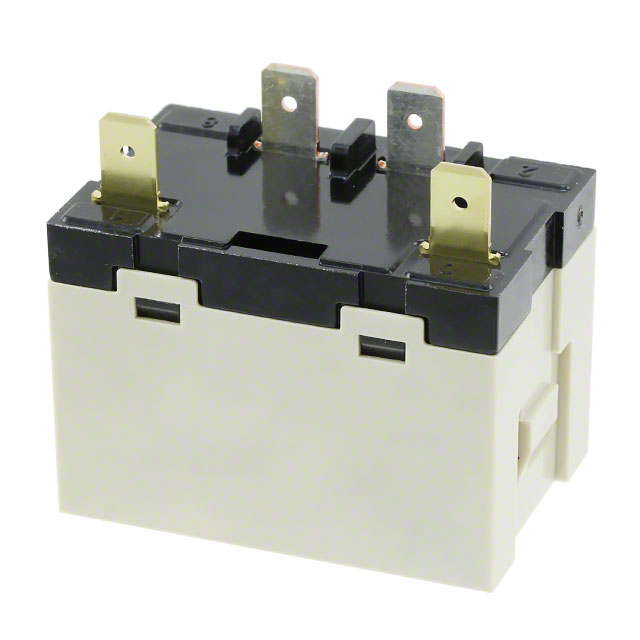

G7L-1A-T-J-CB DC24
Power Relays, Over 2 AmpsRELAY GEN PURPOSE SPST 30A 24V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage24 V
Contact formSPST-NO
Contact current30 AMax
Switching voltage250 VMax
| Power | |
|---|---|
| Coil Current | 79 mA |
| Coil Voltage | 24VDC |
| Contact Rating (Current) | 30 A |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 3.6 VDC |
| Switching Voltage | 250VAC - Max |
| Environment and package | |
| Grade | - |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 60°C |
| Qualification | - |
| Other | |
| Approval Agency | CSA, TUV, UR |
| Base Product Number | G7L-1A |
| Coil Insulation | Class B |
| Coil Resistance | 303 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Features | Test Button |
| Load - Max Switching | 7500VA |
| Mfr | Omron Electronics Inc-EMC Div |
| Operate Time | 30 ms |
| Packaging | Bulk |
| Part Status | Active |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Seal Rating | - |
| Series | G7L |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
