Goford SemiconductorTaiwan, China

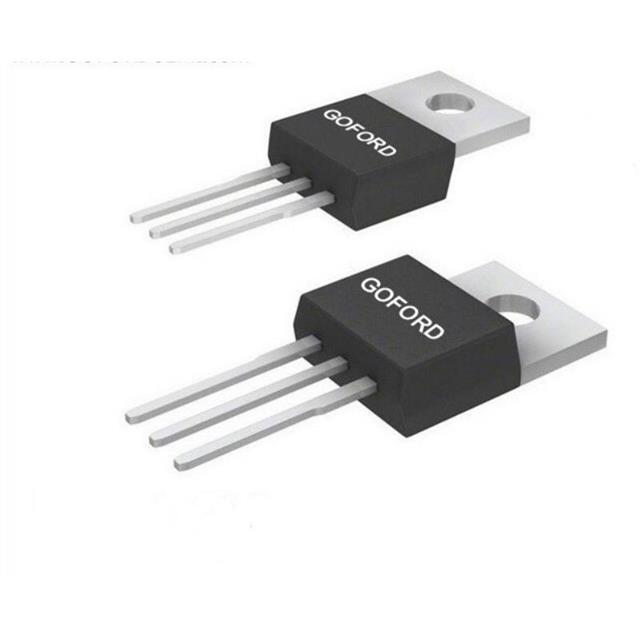

MOSFET N-CH 40V 70A TO-220
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Continuous drain current70 A
On-resistance7 mΩMax · 30A
Gate threshold voltage2.4 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 70A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 104W (Tc) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Other | |
| FET Feature | Standard |
| FET Type | N-Channel |
| Mfr | Goford Semiconductor |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 30A, 10V |
| Series | TrenchFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
